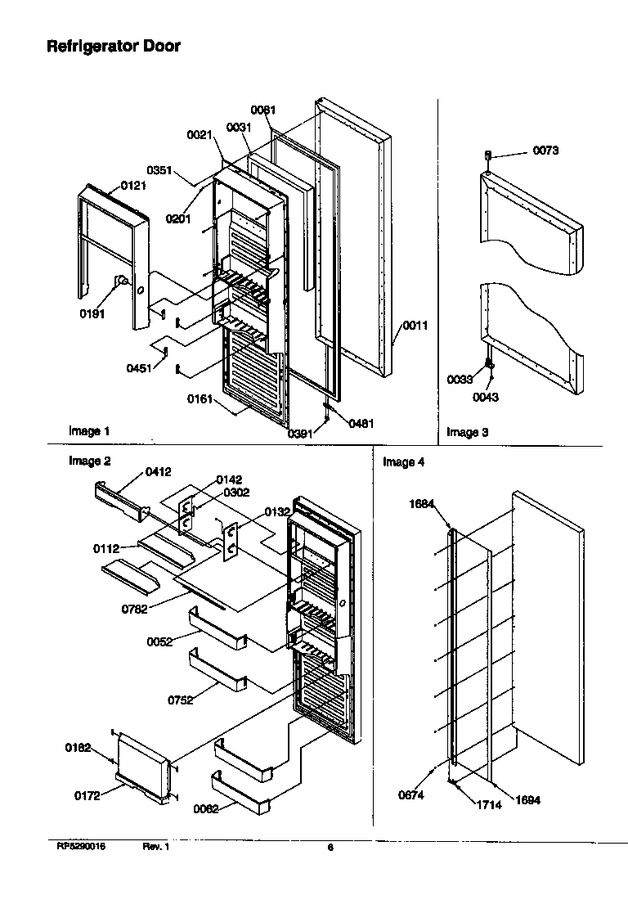

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10881004L		Ass`y, Ref Door(almond)		Appelez-nous	-
21	10861502		Liner-ref Dr		Appelez-nous	-
31	B0523590		Insul., Batt		Appelez-nous	-
33	R0181181		Closure, Door (blk)   (Replaces: 12113204)			Immediately	$ 7.55
43	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
52	10520410		Shelf, Chiller		Appelez-nous	-
62	10521814		Shelf-ref Door		Appelez-nous	-
73	10961001		Bushing, Door (wht)		Appelez-nous	-
81	10359708		Gasket, Door (w Ref)		Appelez-nous	-
112	10883801		Shelf, Dairy		Appelez-nous	-
121	10519004		Frame-chiller		Appelez-nous	-
132	12102907		Track, Dairy Door		Appelez-nous	-
142	12102908		Track, Dairy Door		Appelez-nous	-
161	M0226705		Screw, Shoulder		Appelez-nous	-
172	10519208		Door, Chiller		Appelez-nous	-
182	10162101		Glide-igloo Door		Appelez-nous	-
191	12033201		Tunnel-air		Appelez-nous	-
201	10165101		Clip-tubular		Appelez-nous	-
302	M0500706		Seal-o Ring		Appelez-nous	-
351	M0219730		Screw				$ 7.65
391	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
412	12103001		Door-dairy		Appelez-nous	-
451	10202001		Clip, Retainer		Appelez-nous	-
481	C8972406		Stop, L Door		Appelez-nous	-
674	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
752	10520412		Shelf, Chiller		Appelez-nous	-
782	12102801		Rod-retainer		Appelez-nous	-
1684	12106203		Handle, Ref Dr ( Almond)		Appelez-nous	-
1694	10945902		Insert, Handle(almond)		Appelez-nous	-
1714	10871203		Cap, Ref Handle Bot (almond)		Appelez-nous	-
