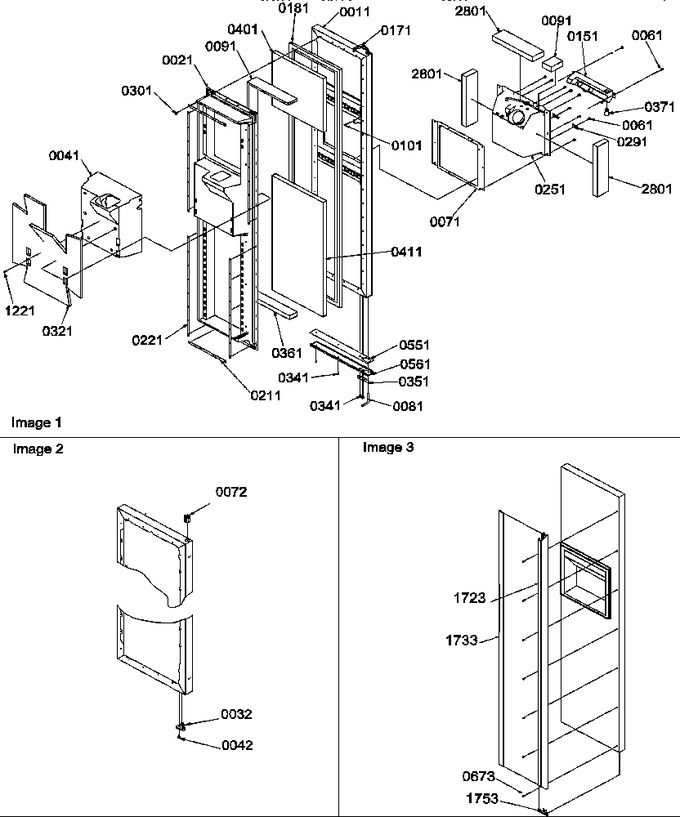

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10881210E		Ass`y, Fz Dr Fm (black)		Appelez-nous	-
21	10860901		Liner-i&w Fz Dr		Appelez-nous	-
32	R0181181		Closure-e Door   (Replaces: 12113203)			Immediately	$ 7.55
41	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
41	10870301		Insul.-i & W Cavity		Appelez-nous	-
61	M0216517		Screw		Appelez-nous	-
71	C8964402		Bushing, Top		Appelez-nous	-
71	D7791003		Gasket Cavity		Appelez-nous	-
81	WPB5705307		Tube, Plastic , 68``   (Replaces: B5705321)				$ 13.05
91	B0523562		Insul. By The Ft.		Appelez-nous	-
101	WP489399		Screw   (Replaces: M0232903)				$ 7.30
151	Y00000000		See Note Elec Brkt Assy		Appelez-nous	-
171	10952104		Harness-fz Door		Appelez-nous	-
181	10359704		Gasket Door Frz		Appelez-nous	-
211	C8982801		Retainer, Door Liner		Appelez-nous	-
221	D7828601		Retainer, Door Liner		Appelez-nous	-
251	Y00000000		See Note E Cavity Assy		Appelez-nous	-
291	C8992901		Clip		Appelez-nous	-
301	M0219730		Screw				$ 7.65
321	10941501		Insul, Batt		Appelez-nous	-
341	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
351	C8972403		Stop, Door (blk)		Appelez-nous	-
361	876370		Insulation Bott (1= 1ft)   (Replaces: B0523588)				$ 243.14
371	W10857122		Light Bulb   (Replaces: M0360001)				$ 14.52
401	12016901		Insul, Batt (ref. Door)		Appelez-nous	-
411	12016902		Insul, Batt (ref. Door)		Appelez-nous	-
673	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
1221	M0311601		Plug, Button		Appelez-nous	-
1723	12106208		Handle, Frz Dr (ebony)		Appelez-nous	-
1733	10945919		Insert, E Handle		Appelez-nous	-
1753	10871206		Cap- E Fz Hndl Bot.		Appelez-nous	-
2801	B0523596		Insul. By The Ft.		Appelez-nous	-
