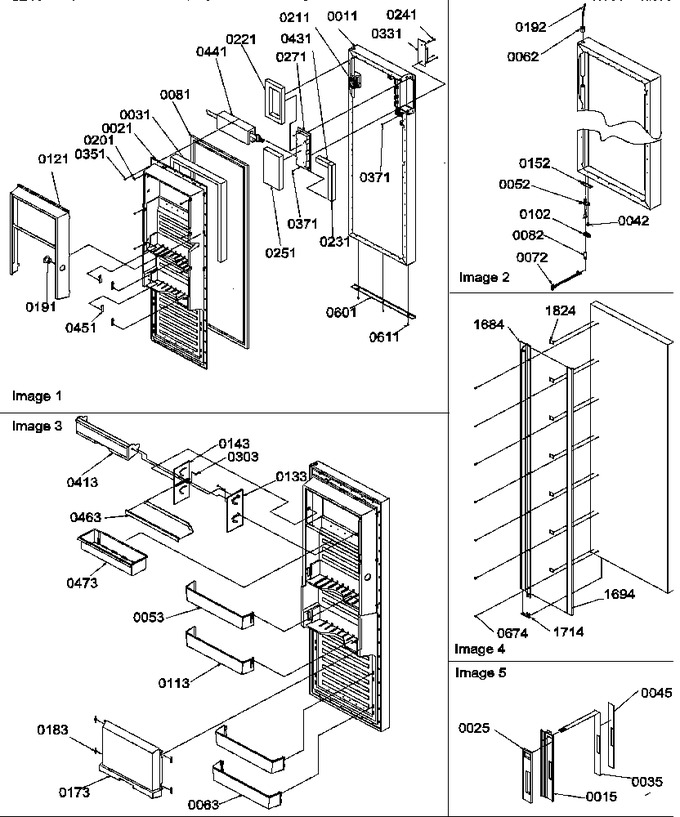

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10876102W		Assy Ref Door Fm		Appelez-nous	-
15	12106401		Handle, Ref Dr (white)		Appelez-nous	-
21	10861401		Liner-ref Dr		Appelez-nous	-
25	10887804		Gasket-control		Appelez-nous	-
31	B0523563		Insulation Ft. K		Appelez-nous	-
35	10519401		Assy, Keyboard		Appelez-nous	-
42	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
45	10603103		Faceplate-w Elect		Appelez-nous	-
52	12113401		Closure, Door (wht)		Appelez-nous	-
53	10111007		Bucket-igloo		Appelez-nous	-
62	WP67004977		Bushing, Top   (Replaces: C8964401)				$ 8.20
63	10521814		Shelf-ref Door		Appelez-nous	-
72	M0335412		Connector-12 Pin		Appelez-nous	-
81	10359701		Gasket, Door (w Ref)		Appelez-nous	-
82	10561601		Assy, Hinge Pin		Appelez-nous	-
102	12113301		Closure, Door (wht)		Appelez-nous	-
113	10520410		Shelf, Chiller		Appelez-nous	-
121	10154901		Frame-igloo Dairy		Appelez-nous	-
133	12102905		Track, Dairy Door		Appelez-nous	-
143	12102906		Track, Dairy Door		Appelez-nous	-
152	10161803		Door Stop		Appelez-nous	-
173	10111809		Door, Igloo		Appelez-nous	-
183	10162101		Glide-igloo Door		Appelez-nous	-
191	10165001		Tunnel-air		Appelez-nous	-
192	12212003		Harness, Ref Door		Appelez-nous	-
201	10165101		Clip-tubular		Appelez-nous	-
211	B5629055		Insulation Batt		Appelez-nous	-
221	10271101		Insul. Batt.		Appelez-nous	-
231	B5629059		Insulation Batt		Appelez-nous	-
241	M0217204		Screw		Appelez-nous	-
251	B5612028		Insulation Batt		Appelez-nous	-
271	D7832904		Cover,p.c. Board		Appelez-nous	-
303	M0500706		Seal-o Ring		Appelez-nous	-
331	10614401		Board-low Volt Pc		Appelez-nous	-
351	M0219730		Screw				$ 7.65
371	M0234114		Screw		Appelez-nous	-
413	12103001		Door-dairy		Appelez-nous	-
431	B5629060		Insulation Batt		Appelez-nous	-
441	B0523585		Insulation Batt Per Foot		Appelez-nous	-
451	10202001		Clip, Retainer		Appelez-nous	-
463	10893201		Shelf, Dairy		Appelez-nous	-
473	10883902		Bucket-beverage		Appelez-nous	-
601	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
611	10980110		Trim-w Ref Bot		Appelez-nous	-
674	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
1684	10887901		Assy Ref Handle Q		Appelez-nous	-
1694	10945905		Insert, Hndl (white)		Appelez-nous	-
1714	10871401		Cap-w Hndl Bot.		Appelez-nous	-
1824	10875801		Clip-handle		Appelez-nous	-
NI	B8381401		Grommet-hinge Pin		Appelez-nous	-
NI	B8390601		Grommet-hinge Pin		Appelez-nous	-
