SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts


03 - Deli, Shelves, Crisper Assemblies & Acs


04 - Drain Systems, Rollers, And Evap Assy


05 - Fz Door And Toe Grille


06 - Fz Shelves And Light


07 - Ice & Water Cavity & Elec Brkt Assy


08 - Ice Bucket Auger, Im & Im Parts


09 - Ice Maker/control Assy


10 - Machine Compartment


11 - Ref Door


12 - Ref/fz Shelves, Lights, And Hinges

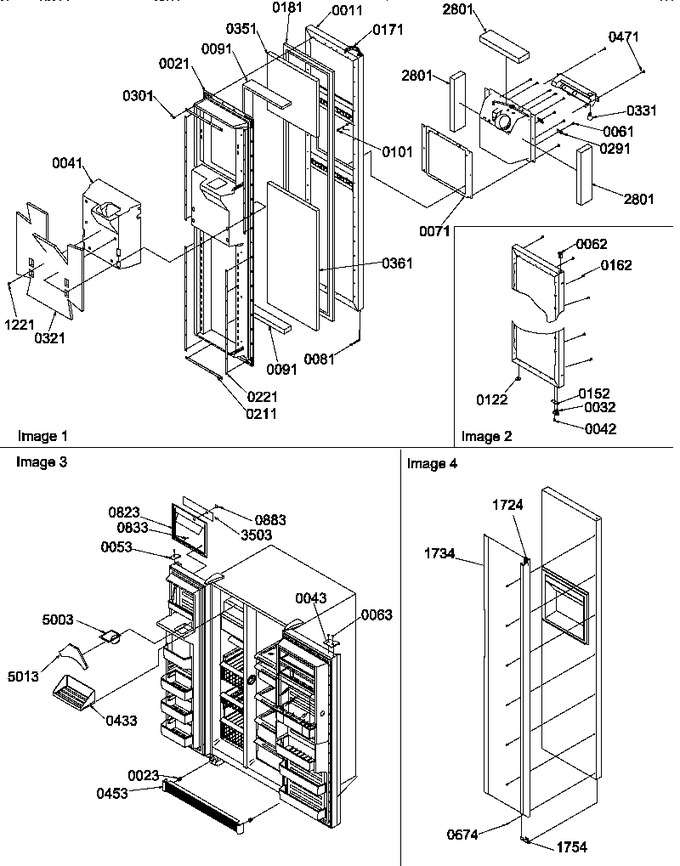

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10876211E		Assy, Fz Dr Fm (blk)		Appelez-nous	-
21	10861001		Liner-i&w Fz Dr		Appelez-nous	-
23	M0117303		Clip, Grille				$ 5.65
32	R0181181		Closure-e Door   (Replaces: 12113203)			Immediately	$ 7.55
41	10872801		Insul-i&w Cavity		Appelez-nous	-
42	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
43	10871303		Cap- E Hndl Top		Appelez-nous	-
53	10871106		Cap-e Fz Hndl Top		Appelez-nous	-
61	M0216517		Screw		Appelez-nous	-
62	C8964402		Bushing, Top		Appelez-nous	-
63	M0213517		Screw K		Appelez-nous	-
71	D7791003		Gasket Cavity		Appelez-nous	-
81	WPB5705307		Tube, Plastic , 68``   (Replaces: B5705321)				$ 13.05
91	B0523563		Insulation Ft. K		Appelez-nous	-
101	WP489399		Screw, Ca   (Replaces: M0239216)				$ 7.30
122	M0310336		Plug, Button (blk)		Appelez-nous	-
152	10161805		Stop-black Door		Appelez-nous	-
162	10281002		Grommet, Screw		Appelez-nous	-
171	12195102		Harness, Frz Door		Appelez-nous	-
181	10359711		Gasket Door Frz		Appelez-nous	-
211	C8982801		Retainer, Door Liner		Appelez-nous	-
221	D7828601		Retainer, Door Liner		Appelez-nous	-
291	C8992901		Clip		Appelez-nous	-
301	M0219730		Screw				$ 7.65
321	10940701		Insul-disp Batt		Appelez-nous	-
331	M0360401		Light Bulb (220/250) 6 Watt		Appelez-nous	-
351	12016905		Insul, Batt		Appelez-nous	-
361	12016906		Insul, Batt		Appelez-nous	-
433	10870801		Shelf, Ice Cream		Appelez-nous	-
453	12321806		Kit, Toe Grille (blk)		Appelez-nous	-
471	M0216705		Screw				$ 5.81
674	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
823	10986103		Facade-e Disp		Appelez-nous	-
833	M0219601		Screw		Appelez-nous	-
883	12036402		Cap-switch Bk		Appelez-nous	-
1221	M0311602		Plug, Button (white)		Appelez-nous	-
1724	12106208		Handle, Frz Dr (ebony)		Appelez-nous	-
1734	10945919		Insert, E Handle		Appelez-nous	-
1754	10871206		Cap- E Fz Hndl Bot.		Appelez-nous	-
2801	B0523596		Insul. By The Ft.		Appelez-nous	-
3503	10984628		Insert, E Facade		Appelez-nous	-
5003	10131401		Ice Chute		Appelez-nous	-
5013	12044601		Gasket-ice Chute		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
