Diagram # Part Number Description Series Availability Ships Price Add to Cart
11 A1061501 Pin, Chute Door Appelez-nous -
12 10323305 Bracket, Elec Mtg Appelez-nous -
21 A1061601 Retainer, Ice Arm Appelez-nous -
22 C8972703 Switch Appelez-nous -
31 B8380701 Insulation, Chute Door Appelez-nous -
41 B8380801 Brkt-chute Door Appelez-nous -
42 M0237809 Screw, T.f. Appelez-nous -
51 B8380901 Spring,chute Door Special Order $ 7.18

61 B8385401 Spring, Return Appelez-nous -
72 10166101 Switch-light Cavity Special Order $ 6.49

81 W10819546 Clip, Facade   (Replaces: B8390302) Special Order $ 13.14

82 D7845102 Socket, Lamp Appelez-nous -
91 C8972501 Retainer Door Delay Appelez-nous -
92 D7383482 Jumper Wire Appelez-nous -
101 C8973602 Delay, Door Special Order $ 49.84

102 D7383480 Wire, Jumper Appelez-nous -
111 10876015 Cavity, Disp (almond) Appelez-nous -
112 C8972704 Switch , Light Appelez-nous -
121 10246601 Kit,chute Dr No.3 Appelez-nous -
122 D7383479 Wire, Jumper Appelez-nous -
131 12102102 Arm-1 Ice Actuator Appelez-nous -
132 B5667304 Wire Clip Appelez-nous -
141 Y10872102 Use 10872108 Appelez-nous -
142 10131805 Cover, Elec. Brkt Appelez-nous -
151 10882107 Heater-3w Cavity Appelez-nous -
152 10295701 Bracket, Socket Mtg Appelez-nous -
161 M0211116 Screw, Sm Appelez-nous -
182 10492402 Switch, Crushed/cube Appelez-nous -
212 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 8.43

232 10419403 Insulation,disp Elec Brkt Appelez-nous -
252 W11084238 Screw   (Replaces: M0234001) Appelez-nous -
262 10877104 Cover-switch Appelez-nous -
501 A3030357 Gasket Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

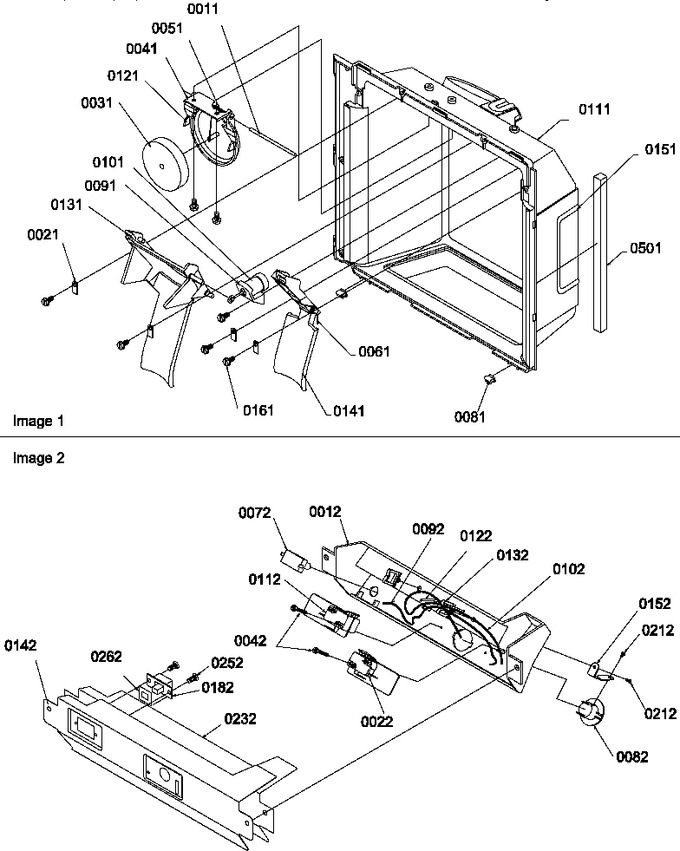

Diagram for SRDE327S3L (BOM: P1312501W L)
