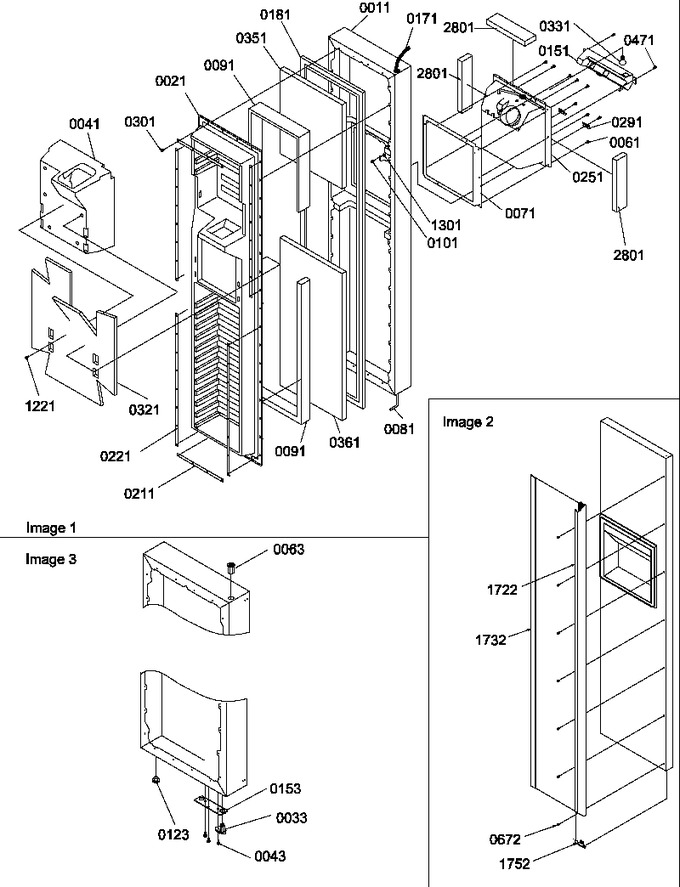

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 10876203W | Fz Dr Foam Ass`y |
|
- | |||||
| 21 | 10861001 | Liner-i&w Fz Dr |
|
- | |||||
| 33 | R0181181 | Closure-w Door (Replaces: 12113201) |
|
Immediately | $ 7.55 | ||||
| 41 | 12032801 | Insul-i & W Cavity |
|
- | |||||
| 43 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 61 | M0216517 | Screw |
|
- | |||||
| 63 | WP67004977 | Bushing, Top (Replaces: C8964401) |
|
$ 8.20 | |||||
| 71 | D7791003 | Gasket Cavity |
|
- | |||||
| 81 | WPB5705307 | Tube, Plastic , 68`` (Replaces: B5705321) |
|
$ 13.05 | |||||
| 91 | B0523563 | Insulation Ft. K |
|
- | |||||
| 101 | WP489399 | Screw, Se (Replaces: M0232929) |
|
$ 7.30 | |||||
| 123 | M0310308 | Plug, Button (wht) |
|
- | |||||
| 151 | Y00000000 | See Note Elec Brkt Assy -- (see Image 2 Pages 10 & 11 For Assy Breakdown) |
|
- | |||||
| 153 | 10161803 | Door Stop |
|
- | |||||
| 171 | 12053601 | Harness Frz Dr |
|
- | |||||
| 181 | 10359702 | Gasket (w Frz Dr) |
|
- | |||||
| 211 | C8982801 | Retainer, Door Liner |
|
- | |||||
| 221 | D7828601 | Retainer, Door Liner |
|
- | |||||
| 251 | Y00000000 | See Note W Cavity Assy -- (see Image 1 Pages 10 & 11 For Assy Breakdown) |
|
- | |||||
| 291 | C8992901 | Clip |
|
- | |||||
| 301 | M0219730 | Screw |
|
$ 7.65 | |||||
| 321 | 10940701 | Insul-disp Batt |
|
- | |||||
| 331 | M0360401 | Light Bulb (220/250) 6 Watt |
|
- | |||||
| 351 | 12016905 | Insul, Batt |
|
- | |||||
| 361 | 12016906 | Insul, Batt |
|
- | |||||
| 471 | M0216705 | Screw |
|
$ 5.81 | |||||
| 672 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 1221 | M0311601 | Plug, Button |
|
- | |||||
| 1301 | M0272803 | Lock Washer |
|
- | |||||
| 1722 | 12106206 | Handle, Frz Dr (white) |
|
- | |||||
| 1732 | 10945917 | Insert, W Handle |
|
- | |||||
| 1752 | 10871202 | Cap-w Fz Hndl Bot. |
|
- | |||||
| 2801 | B0523596 | Insul. By The Ft. |
|
- |
