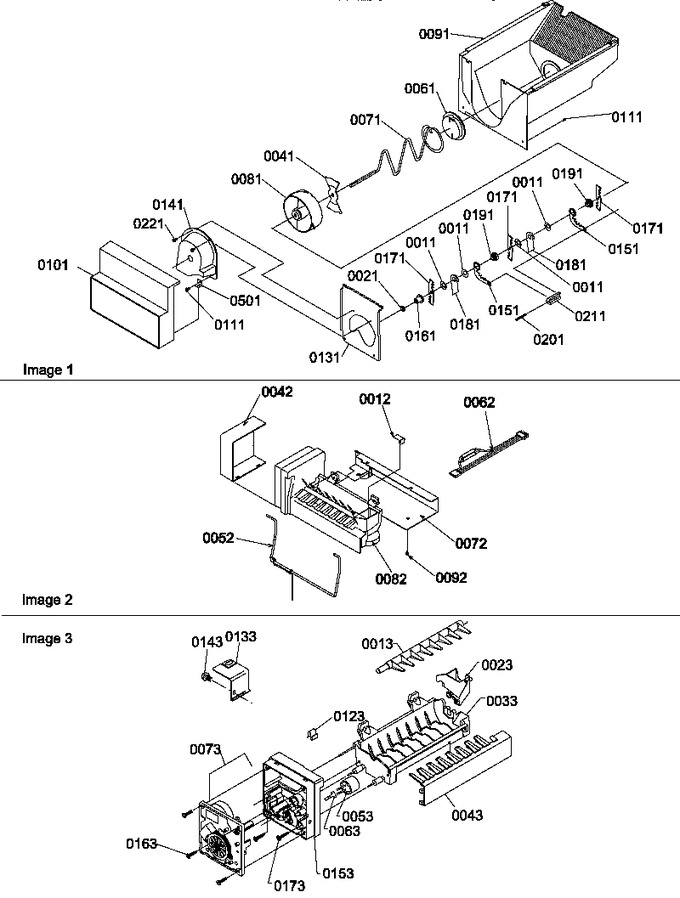

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10275101		Washer, Waved		Appelez-nous	-
12	B5720301		Clip		Appelez-nous	-
21	WPM0223101		Nut, Locking   (Replaces: M0223101)				$ 8.06
41	10113801		Bar, Crsh Ice Bucket				$ 4.96
42	D7820401		Cover Im		Appelez-nous	-
52	D7877001		Arm,ice Maker Shut Off		Appelez-nous	-
61	WPD7749401		Cap, Helix End   (Replaces: D7749401)				$ 29.01
62	D7843601		Harness, Im		Appelez-nous	-
71	10114401		Agitator, Ice				$ 107.74
72	D7846201		Shield Im		Appelez-nous	-
81	10114703		Wheel, Crsh Ice		Appelez-nous	-
82	D7846304		Ice Maker		Appelez-nous	-
91	10111905		Bucket, Crushed Ice				$ 104.60
92	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 8.25
101	10870906		Front-ci Bucket		Appelez-nous	-
111	67006425		Screw, Sm   (Replaces: M0238642)			Immediately	$ 7.30
131	10115001		Front, Ice Crusher				$ 25.55
141	10114003		Cover, Blade		Appelez-nous	-
151	10114601		Blade, Static		Appelez-nous	-
161	10113901		Spacer, Cover		Appelez-nous	-
171	10114501		Blade, Rotating		Appelez-nous	-
181	10275201		Damper, Ice		Appelez-nous	-
191	10114301		Washer Stepped		Appelez-nous	-
201	M1200108		Pin, Roll		Appelez-nous	-
211	10114101		Anchor, Blade		Appelez-nous	-
221	M0231704		Screw, Tf		Appelez-nous	-
501	10894901		Brkt, Cover Mtg.		Appelez-nous	-
NI	WPW10339879		Tie   (Replaces: M0321202)				$ 8.30
