SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts


03 - Deli, Shelves, Crisper Assy


04 - Drain, Rollers, And Evap Assy


05 - Facade Dispenser Cover, Elec Brkt Assy


06 - Freezer Door


07 - Freezer Shelves And Lights


08 - Ice Bucket Auger And Ice Maker Parts


09 - Ice Maker/control Assy


10 - Machine Compartment


11 - Refrigerator Door, Trim And Handles


12 - Refrigerator/freezer Lights And Hinges

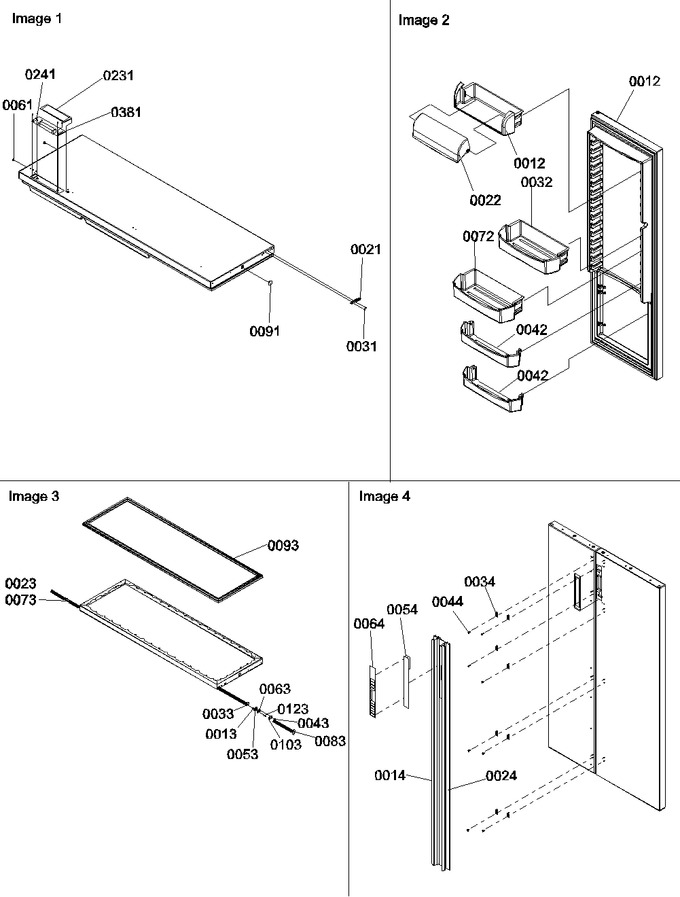

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	12319702E		Assy, Ref Door (black) Sxs		Appelez-nous	-
12	12308603		Frame, Dairy				$ 26.46
13	B8390602		Grommet, Hinge Pin		Appelez-nous	-
14	12438907		Handle, Frz Door (black)		Appelez-nous	-
21	C8972407		Stop, Door (blk)		Appelez-nous	-
22	12308701		Door, Dairy		Appelez-nous	-
23	B8381402		Grommet, Hinge Pin		Appelez-nous	-
24	12442603		Handle, Ref Door (black)		Appelez-nous	-
31	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
32	12309510		Bucket, Ref Door		Appelez-nous	-
33	10361804		Shim, Dr Bushing		Appelez-nous	-
34	12315101		Clip		Appelez-nous	-
42	12311206		Shelf, Ref Door				$ 30.51
43	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
44	WP489399		Screw, Se   (Replaces: M0232929)				$ 7.30
53	R0181181		Closure, Door (blk)   (Replaces: 12113402)			Immediately	$ 7.55
54	10519401		Assy, Keyboard		Appelez-nous	-
61	M0311604		Plug, Button (blk)		Appelez-nous	-
63	12113302		Closure, Door (blk)		Appelez-nous	-
64	10603107		Faceplate-e Elect		Appelez-nous	-
72	12309511		Bucket, Ref Door				$ 39.49
73	C8964402		Bushing, Top		Appelez-nous	-
83	M0335412		Connector-12 Pin		Appelez-nous	-
91	A3080001		Plug, Button (blk)		Appelez-nous	-
93	R9800048		Assy,ref Dr Gasket(black)		Appelez-nous	-
103	10361802		Shim, Dr Bushing		Appelez-nous	-
123	10561601		Assy, Hinge Pin		Appelez-nous	-
231	12414301		Gasket, Control		Appelez-nous	-
241	M0217204		Screw		Appelez-nous	-
381	10866002		Board-lv Pc X		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
