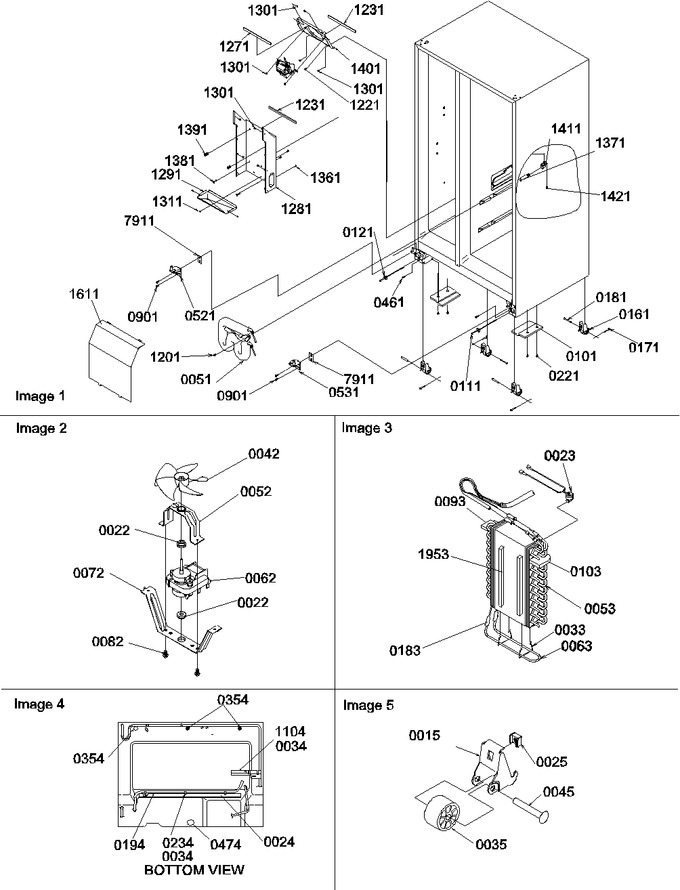

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	C8742402		Assy, Roller Bracket		Appelez-nous	-
22	WP2264462		Grommet   (Replaces: A1017202)			Immediately	$ 46.17
23	R0161090		Tstat   (Replaces: 12017821)				$ 110.66
24	10906506		Insul., Oc Bot		Appelez-nous	-
25	M0286708		Nut, Speed				$ 47.85
33	W11673433		Clip, Evap Heater   (Replaces: 10428101)				$ 148.18
34	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
35	WP10450603		Roller   (Replaces: 10450602)				$ 8.27
42	WP12059901		Fan-evap/5.250 Blade   (Replaces: 12059901)				$ 19.67
45	M1205302		Rivet				$ 5.85
51	10988502		Tank-water		Appelez-nous	-
52	10656102		Brkt-mtr Mt/up		Appelez-nous	-
53	R0170055		Assy,low Side(sxs 22)				$ 322.79
62	WP10513804		Motor-evap Fanr0161090c, 50hz)   (Replaces: 10513805)				$ 256.76
63	WP10428406		Heater, Evap. (230 Vac)   (Replaces: 10428406)				$ 100.32
72	10909401		Brkt, Mtr Mt		Appelez-nous	-
82	WP90767		Screw, Sm   (Replaces: M0224416)			Immediately	$ 8.25
93	10629601		Block, Air Coil (left)		Appelez-nous	-
101	C8913701		Support, Mc		Appelez-nous	-
103	10629001		Block, Air Coil (right)		Appelez-nous	-
111	10093308		Screw, Adj Roller		Appelez-nous	-
121	M0274067		Washer, Nylon		Appelez-nous	-
161	12452602Q		Assy, Roller Bracket		Appelez-nous	-
171	M1200004		Cotter Pin K		Appelez-nous	-
181	M1200202		Pin K		Appelez-nous	-
183	12325101		Harness Evap Heater		Appelez-nous	-
194	12142001		Tube-drain		Appelez-nous	-
221	W11233072		Screw   (Replaces: M0214931)			Immediately	$ 14.72
234	M0102303		Clamp		Appelez-nous	-
354	A3080001		Plug, Button (blk)		Appelez-nous	-
461	M0204339		Screw Bolt K		Appelez-nous	-
474	A3076901		Plug-button				$ 5.70
521	12431708		Hinge, L Btm-wh E Ct		Appelez-nous	-
531	12431712		Hinge,elec Btm-wh E Ct		Appelez-nous	-
901	WP67006715		Screw, Sm   (Replaces: M0241408)				$ 7.55
1104	12021201		Baffle, Air		Appelez-nous	-
1201	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
1221	WP489399		Screw   (Replaces: M0232903)				$ 7.30
1231	B8386608		Gasket		Appelez-nous	-
1271	B8386607		Gasket (1=1ft.)		Appelez-nous	-
1281	10893803		Shield, Evap		Appelez-nous	-
1291	D7850202		Drip Tray Pnt.		Appelez-nous	-
1301	WP90767		Screw, Sm   (Replaces: M0224416)			Immediately	$ 8.25
1311	10098801		Rivet		Appelez-nous	-
1361	M0580002		Grommet A		Appelez-nous	-
1371	M0360402		Light Bulb (230/240 Vac)		Appelez-nous	-
1381	10527401		Clip, Evap		Appelez-nous	-
1391	10623003		Clip, Evaporator		Appelez-nous	-
1401	10890202		Evap Fan Shroud		Appelez-nous	-
1411	D7845102		Socket, Lamp		Appelez-nous	-
1421	M0213129		Screw		Appelez-nous	-
1611	10914202		Cover-water Tank		Appelez-nous	-
1953	A3030361		Gasket		Appelez-nous	-
1953	A3030357		Gasket		Appelez-nous	-
7911	12187603		Shim, Bottom Hinge Metal		Appelez-nous	-
