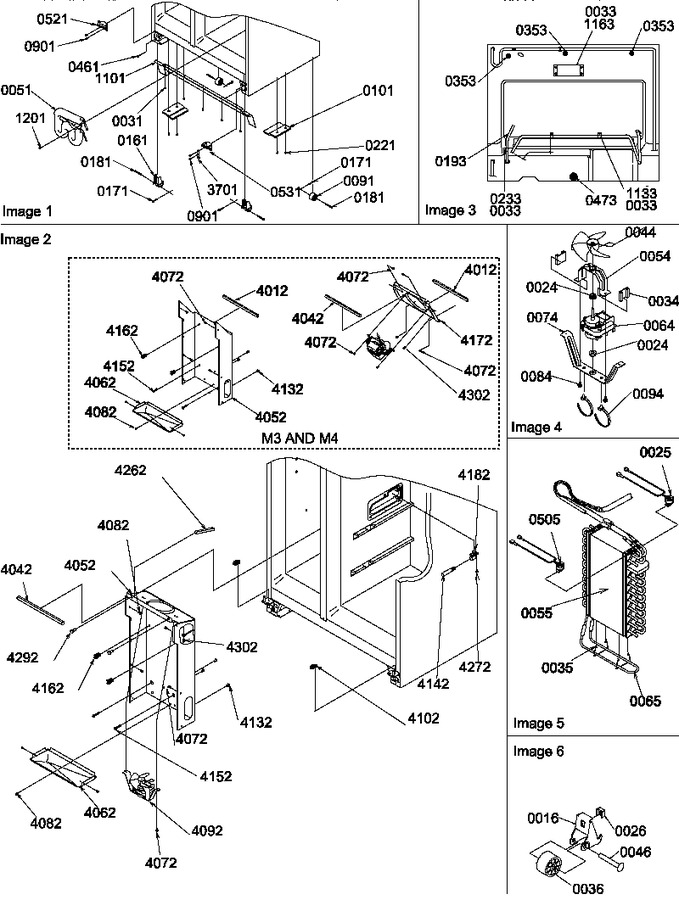

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	C8742401		Assy, Roller Bracket		Appelez-nous	-
24	WP2264462		Grommet   (Replaces: A1017202)			Immediately	$ 46.17
25	R0161090		Tstat   (Replaces: 12017821)				$ 110.66
26	M0286708		Nut, Speed				$ 47.85
31	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
33	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
35	W11673433		Clip, Evap Heater   (Replaces: 10428101)				$ 148.18
36	WP10450603		Roller   (Replaces: 10450602)				$ 8.27
44	WP12059901		Fan-evap/5.250 Blade   (Replaces: 12059901)				$ 19.67
46	M1205302		Rivet				$ 5.85
51	10988502		Tank-water		Appelez-nous	-
54	10656102		Brkt-mtr Mt/up		Appelez-nous	-
55	R0170065		Assy,low Side		Appelez-nous	-
64	WP10513804		Motor-evap Fanr0161090c, 50hz)   (Replaces: 10513805)				$ 256.76
65	WP10428406		Heater, Evap. (230 Vac)   (Replaces: 10428406)				$ 100.32
74	10909401		Brkt, Mtr Mt		Appelez-nous	-
84	WP90767		Screw, Sm   (Replaces: M0224416)			Immediately	$ 8.25
91	WP10450603		Roller   (Replaces: 10450602)				$ 8.27
94	M0322202		Tie Wire		Appelez-nous	-
101	10508001		Support, Mach Comp.		Appelez-nous	-
161	C8956101		Assy, Roller Bracket		Appelez-nous	-
171	M1200004		Cotter Pin K		Appelez-nous	-
181	M1200202		Pin K		Appelez-nous	-
193	10505101		Tube, Drain		Appelez-nous	-
221	WP3400094		Screw   (Replaces: M0253942)				$ 9.26
233	M0102303		Clamp		Appelez-nous	-
353	A3080001		Plug, Button (blk)		Appelez-nous	-
461	M0204339		Screw Bolt K		Appelez-nous	-
473	A3076901		Plug-button				$ 5.70
521	10163601		Bottom Hinge, Frz		Appelez-nous	-
531	10496120		Elec Bot Hng-bk E Ct		Appelez-nous	-
901	WP67006715		Screw   (Replaces: M0233847)				$ 7.55
1101	10508104		Baffle, M.c. Air		Appelez-nous	-
1133	W10833902		Clamp, Tube   (Replaces: M0108105)				$ 11.54
1163	10906201		Brkt.,h.v. Box		Appelez-nous	-
1201	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
3701	12146901		Brkt-adj Hinge		Appelez-nous	-
4012	B8386608		Gasket		Appelez-nous	-
4042	B8386607		Gasket (1=1ft.)		Appelez-nous	-
4052	10893802		Shield, Evap		Appelez-nous	-
4062	D7850202		Drip Tray Pnt.		Appelez-nous	-
4072	WP90767		Screw, Sm   (Replaces: M0224416)			Immediately	$ 8.25
4082	10098801		Rivet		Appelez-nous	-
4092	Y00000000		See Note Evap Fn Mtr Assy -- (see Image 4 Pages 20 & 21 For Assy Breakdown)		Appelez-nous	-
4102	R0181181		Kit,dr Closure   (Replaces: 12113502)			Immediately	$ 7.55
4132	M0580002		Grommet A		Appelez-nous	-
4142	M0360402		Light Bulb (230/240 Vac)		Appelez-nous	-
4152	10527401		Clip, Evap		Appelez-nous	-
4162	10623003		Clip, Evaporator		Appelez-nous	-
4172	10890202		Evap Fan Shroud		Appelez-nous	-
4182	D7845102		Socket, Lamp		Appelez-nous	-
4272	M0217225		Screw		Appelez-nous	-
4292	M0580003		Grommet		Appelez-nous	-
4302	WP489399		Screw   (Replaces: M0232903)				$ 7.30
NI	10987517		Insulation		Appelez-nous	-
