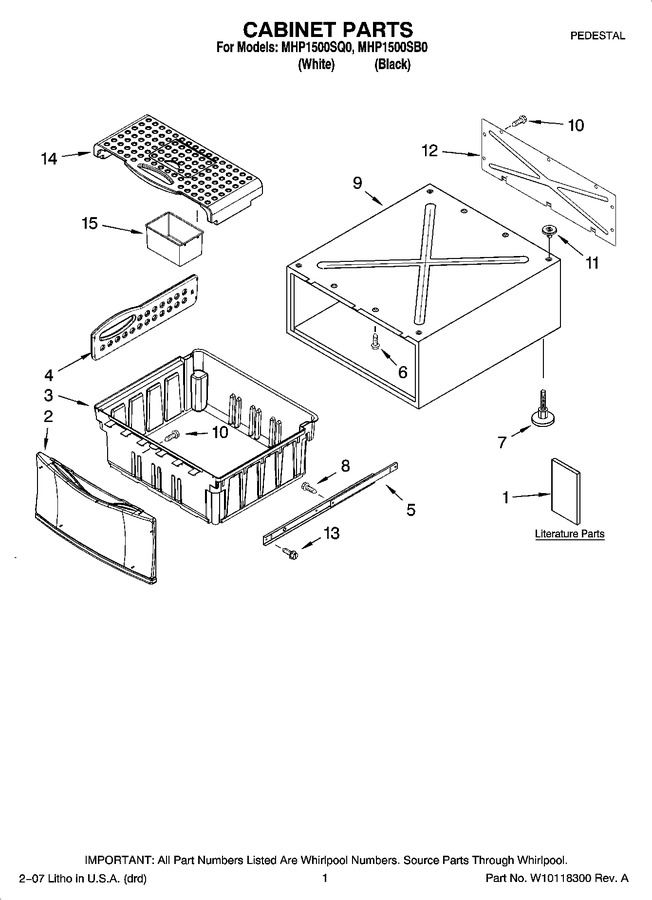

View Diagram in Separate Window
Print Part List
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10108880 | Installation Instructions |
|
- | |||||
| 2 | 8577949 | Drawer Front Assembly (black) |
|
- | |||||
| 2 | 8538032 | Drawer Front Assembly (white) |
|
- | |||||
| 3 | 8538028 | Drawer Bin |
|
- | |||||
| 4 | 8565576 | Divider, Drawer |
|
- | |||||
| 5 | 8538030 | Slide Assembly |
|
- | |||||
| 6 | WPW10346892 | Screw (Replaces: 3400111) |
|
Immediately | $ 7.55 | ||||
| 7 | WP8563585 | Foot Assembly (Replaces: 8563585) |
|
Immediately | $ 14.76 | ||||
| 8 | WP3388228 | Screw, 6-20 X 3/8 (Replaces: 3400639) |
|
$ 7.30 | |||||
| 10 | WPW10213953 | Screw, 8-18 X 1/2 (Replaces: 8533995) |
|
Immediately | $ 7.55 | ||||
| 11 | WP8537982 | Pad (4) (Replaces: 8537982) |
|
Immediately | $ 8.69 | ||||
| 12 | 8537939 | Panel, Rear |
|
- | |||||
| 13 | WP9740849 | Screw, 8-18 X 7/16 (Replaces: 9740849) |
|
$ 7.30 | |||||
| 14 | 8577939 | Shelf, U Assembly |
|
- | |||||
| 15 | 8577942 | Box, U Shelf |
|
$ 69.27 | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | |||||
| 786020 | Paint, Pressurized Spray (12 Oz.) (black) |
|
- | ||||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- |
