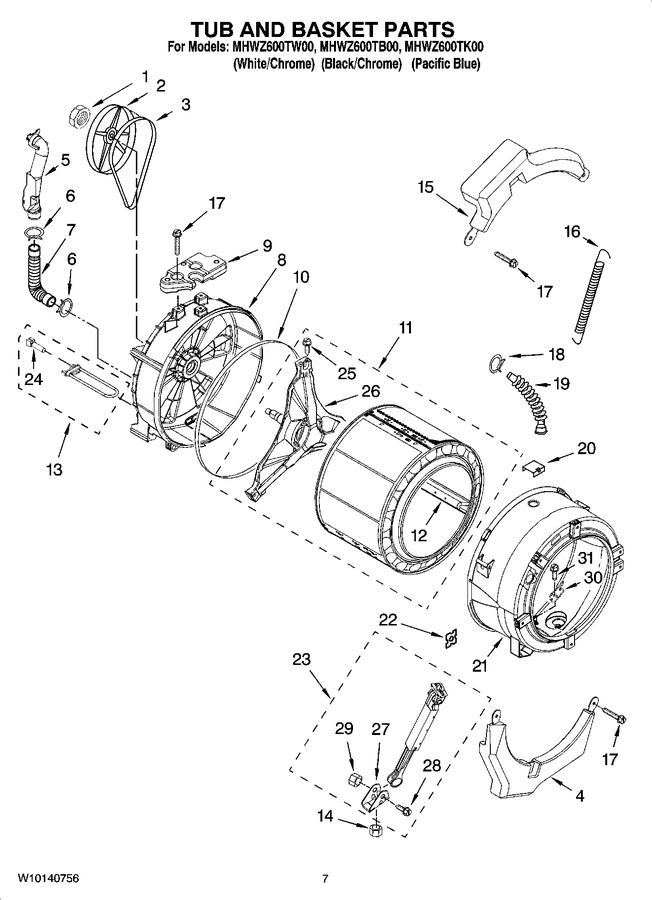

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10283361 | Nut, Pulley (Replaces: 8533999) |
|
Immediately | $ 79.11 | ||||
| 2 | WP8540088C | Pulley (Replaces: 8540088C) |
|
$ 196.32 | |||||
| 3 | WPW10388418 | Belt, Drive (Replaces: W10116215) |
|
Immediately | $ 56.08 | ||||
| 4 | W10200297 | Counterweight, Front Lower (Replaces: 8540600) |
|
$ 336.76 | |||||
| 5 | W10112169 | Pipe, Ventilation |
|
$ 178.92 | |||||
| 6 | 8540010 | Clamp, Vent Hose |
|
$ 11.18 | |||||
| 7 | W11398765 | Hose, Exhaust (Replaces: 8540019) |
|
$ 30.18 | |||||
| 8 | 280255 | Tub, Rear (includes Items 10, 21 & 22) (Replaces: W10112663) |
|
Immediately | $ 424.91 | ||||
| 9 | 8540604 | Counterweight, Rear |
|
- | |||||
| 10 | WPW10111158 | Gasket, Tub (Replaces: 8540090) |
|
Immediately | $ 99.13 | ||||
| 11 | WPW10112984 | Basket, Complete (Replaces: W10112984) |
|
$ 618.64 | |||||
| 12 | WPW10112972 | Baffle, Tub (Replaces: W10112972) |
|
Immediately | $ 99.92 | ||||
| 13 | WPW10426377 | Element, Heating (Replaces: 8540323) |
|
$ 303.81 | |||||
| 14 | 8534084 | Nut, Shock Absorber Mounting |
|
$ 12.14 | |||||
| 15 | 8540598 | Counterweight, Front Upper |
|
- | |||||
| 16 | 280159 | Spring, Suspension (Replaces: W10010360) |
|
$ 106.76 | |||||
| 17 | W11685857 | Bolt, Counterweight Mtg. (Replaces: W10094780) |
|
$ 14.10 | |||||
| 18 | 3363365 | Clamp, Hose |
|
$ 10.75 | |||||
| 19 | WP8540015 | Hose, Exhaust (Replaces: 8540015) |
|
Immediately | $ 41.85 | ||||
| 20 | WP8540092 | Clamp, Tub (Replaces: 8540092) |
|
$ 7.59 | |||||
| 21 | 280255 | Tub, Front (includes Items 8, 10, 22, 30 & 31) (Replaces: W10112664) |
|
Immediately | $ 424.91 | ||||
| 22 | WP8182512 | Nut, Push-in (Replaces: 8540072) |
|
Immediately | $ 6.95 | ||||
| 23 | W10739670 | Shock Absorber (Replaces: W10084740) |
|
$ 349.62 | |||||
| 24 | WPW10467289 | Negative Thermistor Control (Replaces: 8540226) |
|
Immediately | $ 47.80 | ||||
| 25 | WP8540382 | Screw (Replaces: 8540382) |
|
$ 6.95 | |||||
| 26 | 8540342 | Crosspiece Assembly |
|
- | |||||
| 27 | 8540940 | Bracket, Shock Absorber Mounting |
|
$ 11.48 | |||||
| 28 | 8540841 | Bolt, Shock Brkt. |
|
- | |||||
| 29 | 8540842 | Nut, Shock Brkt. |
|
- | |||||
| 30 | 8540322 | Bracket, Heating Element |
|
- | |||||
| 31 | W11230114 | Screw (Replaces: 8540880) |
|
$ 13.28 | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| 285863 | Drain Extension |
|
Immediately | $ 32.43 | |||||
| 786032 | Paint, Bulk (1 Qt.) (black (uncut)) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 786020 | Paint, Pressurized Spray (12 Oz.) (black) |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | |||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | ||||||
| 4396816 | Paint, Touch-up (1/2oz.) (pacific Blue) |
|
$ 12.24 |
