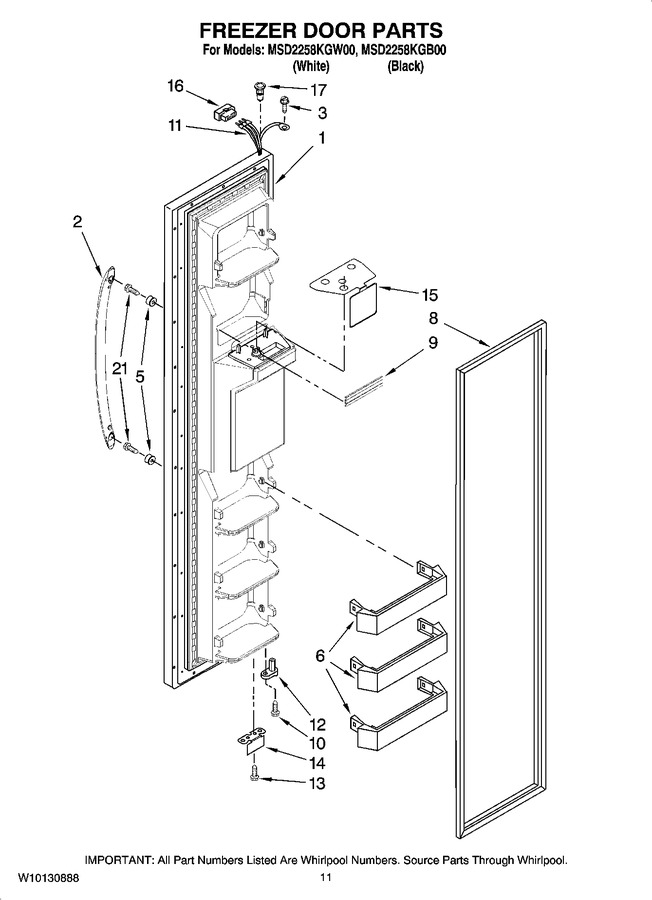

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10120261		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	W10120267		Freezer Door (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
2	67006115		Handle (black)		Appelez-nous	-
2	13004701W		Handle (white)   (Replaces: 67006114)				$ 193.97
3	WP489128		Screw   (Replaces: 488500)				$ 11.40
5	WPW10170540		Stud, Handle   (Replaces: 2326259)			Immediately	$ 8.51
6	WP2156021		Trivet, Fc   (Replaces: 2156021K)				$ 66.43
8	2159072		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221301)				$ 323.60
8	2159080		Door Gasket, Magnetic (black)   (Replaces: 2221312)				$ 325.91
9	WPW10307490		Trim, Door Shelf   (Replaces: 2212375)			Immediately	$ 24.27
10	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
11	W10683539		Wire Harness   (Replaces: 2187725)				$ 38.36
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 42.79
14	WP2206629B		Bracket, Door Stop (white)   (Replaces: 2206629)				$ 42.79
15	2304896		Safety Barrier		Appelez-nous	-
16	WP2154473		Connector   (Replaces: 2154473)				$ 24.83
17	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 8.15
21	WP488163		Screw   (Replaces: 488208)				$ 7.92
