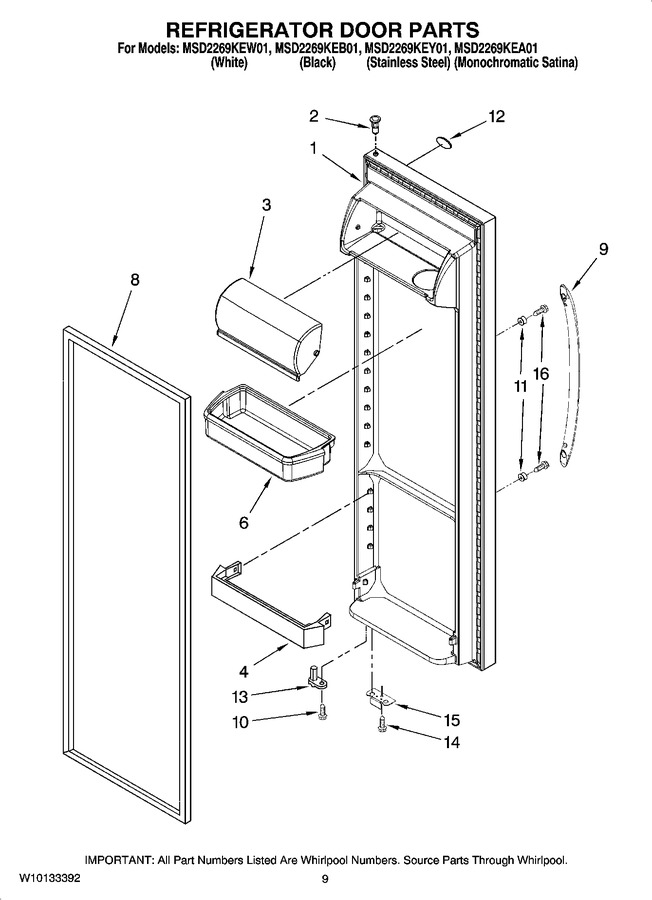

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10120329		Refrigerator Door (includes Item 8) (black)		Appelez-nous	-
1	W10120330		Refrigerator Door (includes Item 8) (stainless)		Appelez-nous	-
1	W10120331		Refrigerator Door (includes Item 8) (mono Satina)		Appelez-nous	-
1	W10120328		Refrigerator Door (includes Item 8) (white)		Appelez-nous	-
2	WP2182181		Thimble-top   (Replaces: 2200087)				$ 7.76
3	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 85.16
4	WP2156022		Trivet, Shelf   (Replaces: 2156022)			Immediately	$ 72.80
6	WPW10321304		Door Bin (3)   (Replaces: 2304235K)			Immediately	$ 44.73
8	2159073		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221300)				$ 317.32
8	W10136732		Door Gasket, Magnetic (apollo Grey)   (Replaces: 2326336)			Immediately	$ 344.00
8	2159081		Door Gasket, Magnetic (black)   (Replaces: 2221311)				$ 319.60
9	67006115		Handle (black)		Appelez-nous	-
9	13004701W		Handle (white)   (Replaces: 67006114)				$ 184.73
9	W11690159		Handle (stainless)   (Replaces: 67006391)				$ 165.49
10	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
11	WPW10170540		Stud, Handle   (Replaces: 2326259)			Immediately	$ 8.51
12	2324038		Nameplate   (Replaces: 13035001)				$ 68.18
13	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
14	WP489483		Screw   (Replaces: 489420)				$ 10.87
15	2200082		Bracket, Door Stop (zinc)				$ 5.83
15	2200082B		Bracket, Door Stop (black)				$ 42.44
16	WP488163		Screw   (Replaces: 488208)				$ 7.54
