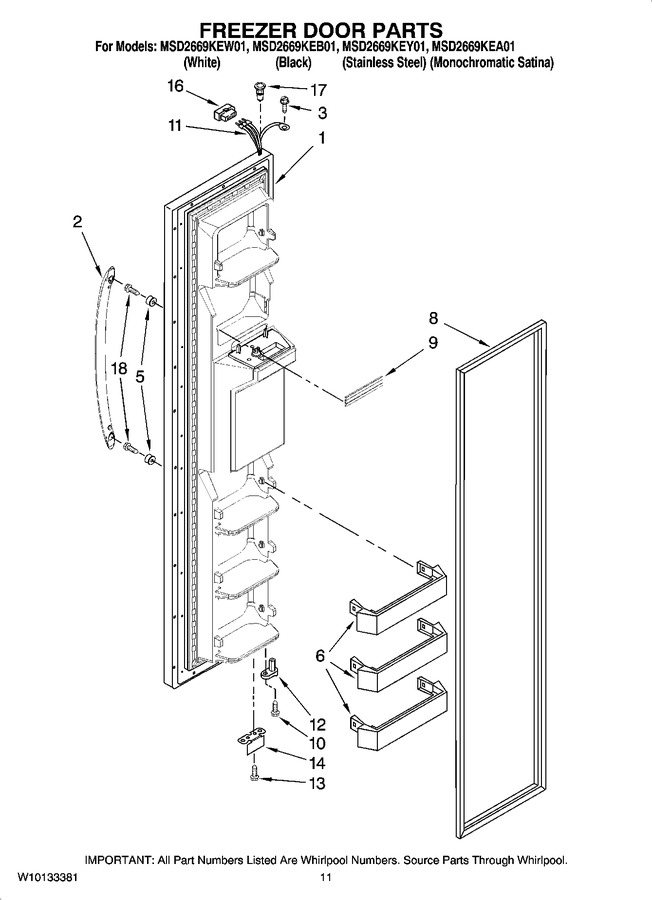

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10128755 | Freezer Door (includes Item 8 And Dispenser Front Parts) (black) |
|
- | |||||
| 1 | W10131137 | Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless) |
|
- | |||||
| 1 | W10131138 | Freezer Door (includes Item 8 And Dispenser Front Parts) (mono Satina) |
|
- | |||||
| 1 | W10128752 | Freezer Door (includes Item 8 And Dispenser Front Parts) (white) |
|
- | |||||
| 2 | 13004701W | Handle (white) (Replaces: 67006114) |
|
$ 193.97 | |||||
| 2 | 67006115 | Handle (black) |
|
- | |||||
| 2 | W11690159 | Handle (stainless) (Replaces: 67006391) |
|
$ 173.76 | |||||
| 3 | WP489128 | Screw (Replaces: 488500) |
|
$ 11.40 | |||||
| 5 | WPW10170540 | Stud, Handle (Replaces: 2326259) |
|
Immediately | $ 8.51 | ||||
| 6 | WP2171157 | Trivet, Fc (Replaces: 2171157K) |
|
$ 63.70 | |||||
| 8 | 2159074 | Door Gasket, Magnetic (mist Beige) (Replaces: 2221303) |
|
$ 325.70 | |||||
| 8 | 2159082 | Door Gasket, Magnetic (black) (Replaces: 2221314) |
|
$ 332.49 | |||||
| 8 | W10136735 | Door Gasket, Magnetic (apollo Grey) (Replaces: 2326339) |
|
$ 254.84 | |||||
| 9 | WPW10307490 | Trim, Door Shelf (Replaces: 2219982) |
|
Immediately | $ 24.27 | ||||
| 10 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 | |||||
| 11 | W10683539 | Wire Harness (Replaces: 2187725) |
|
$ 38.36 | |||||
| 12 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182179) |
|
Immediately | $ 6.39 | ||||
| 13 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 14 | 2200082B | Bracket, Door Stop (black) |
|
$ 42.44 | |||||
| 14 | 2200082 | Bracket, Door Stop (zinc) |
|
$ 5.83 | |||||
| 16 | WP2154473 | Connector (Replaces: 2154473) |
|
$ 24.83 | |||||
| 17 | WP2182181 | Thimble-top (Replaces: 2200086) |
|
$ 8.15 | |||||
| 18 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 |
