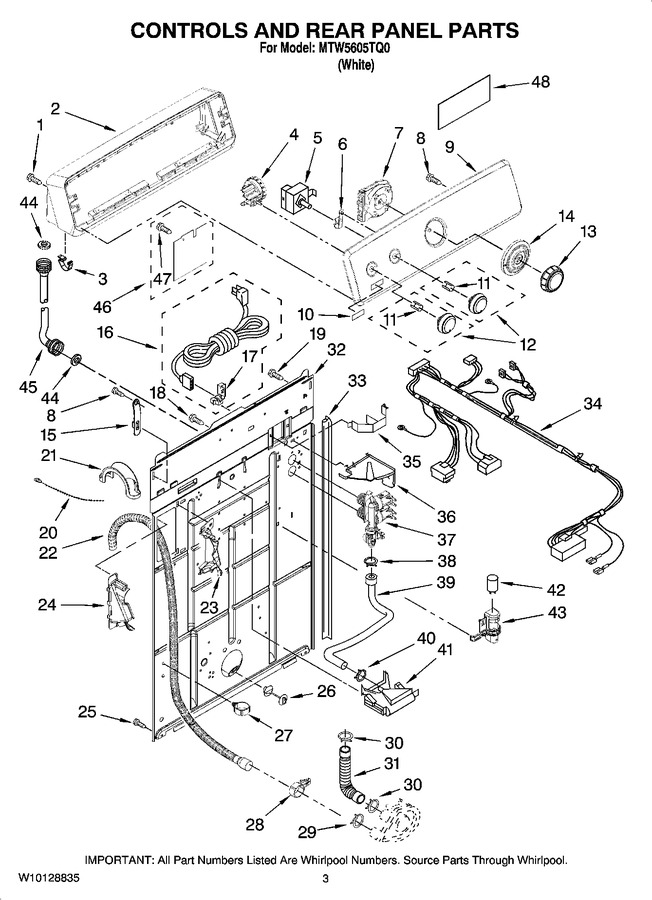

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11693756 | Screw, 8-18 X 1/2 (Replaces: 359625) |
|
Immediately | $ 14.06 | ||||
| 2 | 8579715 | Console Shell (includes Item 3) |
|
- | |||||
| 3 | WP8312709 | Clip-console (2) (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 4 | W10339251 | Switch, Water Level (Replaces: 8577844) |
|
Immediately | $ 292.39 | ||||
| 5 | 8578338 | Switch, Water Temperature |
|
$ 58.59 | |||||
| 6 | 8317975 | Retainer, Harness |
|
$ 5.86 | |||||
| 7 | WPW10111389 | Timer (motor Not A Service Part) (Replaces: W10111389) |
|
Immediately | $ 351.50 | ||||
| 8 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 9 | W10089672 | Panel, Control (includes Item 10) |
|
- | |||||
| 10 | W10203949 | Badge Assembly (Replaces: W10112569) |
|
$ 68.61 | |||||
| 11 | WP8536939 | Clip, Knob (Replaces: 8536939) |
|
Immediately | $ 7.81 | ||||
| 12 | WPW10110029 | Knob, Control (Replaces: W10110029) |
|
$ 52.77 | |||||
| 13 | WPW10110027 | Knob, Timer (Replaces: W10110027) |
|
$ 53.11 | |||||
| 14 | W10110028 | Dial, Timer |
|
$ 37.45 | |||||
| 15 | WP8568314 | Strap, Console (Replaces: 8568314) |
|
$ 7.78 | |||||
| 16 | W10820044 | Cord, Power (Replaces: 8578842) |
|
$ 142.73 | |||||
| 17 | 3952821 | Strain Relief, Power Cord |
|
- | |||||
| 18 | WP9740848 | Screw, 8-18 X 1/2 (Replaces: 9740848) |
|
Immediately | $ 7.86 | ||||
| 19 | WP3351614 | Screw, Ground (Replaces: 3351614) |
|
Immediately | $ 6.95 | ||||
| 20 | WPW10339879 | Cable Tie (Replaces: 3347868) |
|
$ 7.90 | |||||
| 21 | WP8577378 | U-bend, Drain Hose (Replaces: 8577378) |
|
$ 7.97 | |||||
| 22 | WPW10096921 | Drain Hose Assembly (includes Items 21, 27 & 28) (Replaces: 8559373) |
|
Immediately | $ 67.38 | ||||
| 23 | WPW10096921 | Bucket, Drain Hose (left Half) (Replaces: 8541669) |
|
Immediately | $ 67.38 | ||||
| 24 | WPW10096921 | Bucket, Drain Hose (right Half) (Replaces: 8541658) |
|
Immediately | $ 67.38 | ||||
| 25 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 7.82 | |||||
| 26 | WP8519200 | Support, Rear Panel (Replaces: 8519200) |
|
Immediately | $ 18.90 | ||||
| 27 | 8541667 | Clamp, Hose |
|
$ 5.86 | |||||
| 28 | 8541668 | Clamp, Hose |
|
$ 21.26 | |||||
| 29 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 8.39 | ||||
| 30 | WP616099 | Clamp, Hose (Replaces: 3363366) |
|
Immediately | $ 7.81 | ||||
| 31 | 285871 | Hose, Pump To Tub (includes Item 30) (Replaces: 3951449) |
|
Immediately | $ 26.68 | ||||
| 32 | 8318015 | Panel, Rear |
|
$ 148.59 | |||||
| 33 | WP62747 | Pad, Rear Panel (Replaces: 62747) |
|
$ 26.26 | |||||
| 34 | W10113810 | Harness, Wiring (for Detail See Pages 9 & 10) |
|
$ 212.74 | |||||
| 35 | 8055003 | Clip, Harness & Pressure Hose |
|
$ 36.24 | |||||
| 36 | 8539874 | Shield, Suds |
|
$ 7.01 | |||||
| 37 | WP8578343 | Valve, Water Inlet W/bi-metal (Replaces: 8578343) |
|
Immediately | $ 187.31 | ||||
| 38 | WP596669 | Clamp, Hose (Replaces: 301958) |
|
Immediately | $ 8.40 | ||||
| 39 | WP8317926 | Hose, Vacuum Break (Replaces: 8317974) |
|
Immediately | $ 23.69 | ||||
| 40 | WP596669 | Clamp, Hose (Replaces: 370450) |
|
Immediately | $ 8.40 | ||||
| 41 | WP3360977 | Break, Vacuum (Replaces: 387606) |
|
Immediately | $ 50.46 | ||||
| 42 | WP8572717 | Capacitor, Motor Start (Replaces: 8572717) |
|
Immediately | $ 80.14 | ||||
| 43 | 8318046 | Clip, Capacitor |
|
$ 79.31 | |||||
| 44 | WP16123 | Washer, Water Inlet (4) (Replaces: 3976300) |
|
$ 7.70 | |||||
| 45 | WP89503 | Hose, Inlet (bronze) (Replaces: 8571378) |
|
Immediately | $ 24.09 | ||||
| 45 | WP89503 | Hose, Inlet (blue) (Replaces: 8571377) |
|
Immediately | $ 24.09 | ||||
| 46 | W10093726 | Shield, Assembly Lower |
|
- | |||||
| 47 | W10000080 | Rivet |
|
- | |||||
| 48 | W10093725 | Shield, Upper |
|
- |
