01 - Top And Cabinet Parts


02 - Control Panel Parts

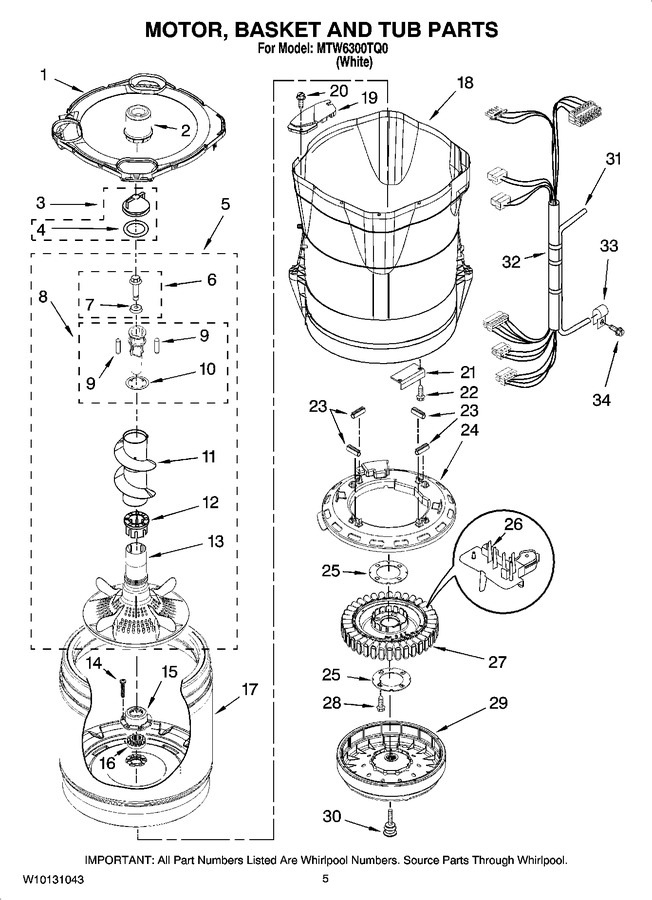

03 - Motor, Basket And Tub Parts


04 - Pump Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10108420		Tub Ring		Appelez-nous	-
2	8566491		Dispenser, Fabric Softener				$ 38.20
3	WPW10074580		Cap, Barrier   (Replaces: W10074580)			Immediately	$ 13.02
4	WPW10072840		Seal, Inner Cap   (Replaces: W10072840)			Immediately	$ 8.72
5	W10076310		Agitator, Assembly (complete)				$ 103.43
6	W10076270		Screw & Washer Assembly				$ 5.83
7	WPW10076260		Washer   (Replaces: W10076260)				$ 11.88
8	W10076210		Cam, Agitator		Appelez-nous	-
9	280160		Roller, Agitator Cam (set Of 4)   (Replaces: 8558884)				$ 8.39
10	8578563		Spacer, Thrust-cam				$ 5.51
11	8577284		Auger, Agitator		Appelez-nous	-
12	8566279		Spacer-thrust		Appelez-nous	-
13	W10076190		Agitator		Appelez-nous	-
14	WP8533953		Screw, 8-16 X 1.000 (6)   (Replaces: 8533953)			Immediately	$ 7.55
15	W10820039		Hub, Basket-driven (includes Item 16)   (Replaces: W10118114)			Immediately	$ 36.28
16	W10820039		Hub, Basket-driver (includes Item 15)   (Replaces: 8545953)			Immediately	$ 36.28
17	WPW10321522		Basket Assembly (includes Items 14, 15, & 16)   (Replaces: W10118180)				$ 905.92
18	W10193886		Tub & Drive Shaft Assembly   (Replaces: 8572660)				$ 763.01
19	8566197		Filter, Dual Pump Hood		Appelez-nous	-
20	WP8533928		Screw, 8-18 X 3/4 (2)   (Replaces: 8533928)			Immediately	$ 8.26
21	8542674		Weight, Tub Counterbalance		Appelez-nous	-
22	WPW10004910		Screw, 12-16 X 1-1/4 (2)   (Replaces: W10004910)				$ 8.39
23	8565172		Tub, Buffer (set Of 4)		Appelez-nous	-
24	8557839		Shield, Drive Motor (includes Item 23)		Appelez-nous	-
25	WP8557836		Plate, Stator (set Of 2)   (Replaces: 8557836)			Immediately	$ 110.55
26	8565188		Rps Assembly		Appelez-nous	-
27	WPW10419333		Stator, Motor (includes Item 25)   (Replaces: 8565170)			Immediately	$ 349.42
28	W10076010		Screw, 1/4-20 X .968 (4)		Appelez-nous	-
29	280146		Rotor, Main Drive Motor (includes Item 30)   (Replaces: 8565177)			Immediately	$ 343.68
31	WP353244		Hose, Pressure Switch   (Replaces: 8572540)			Immediately	$ 59.93
32	W10058730		Harness, Lower (includes Item 31)		Appelez-nous	-
33	W10005430		Clamp, Pressure Hose Retainer			Immediately	$ 9.53
34	8533957		Screw, 10-16 X 1/2				$ 12.60
