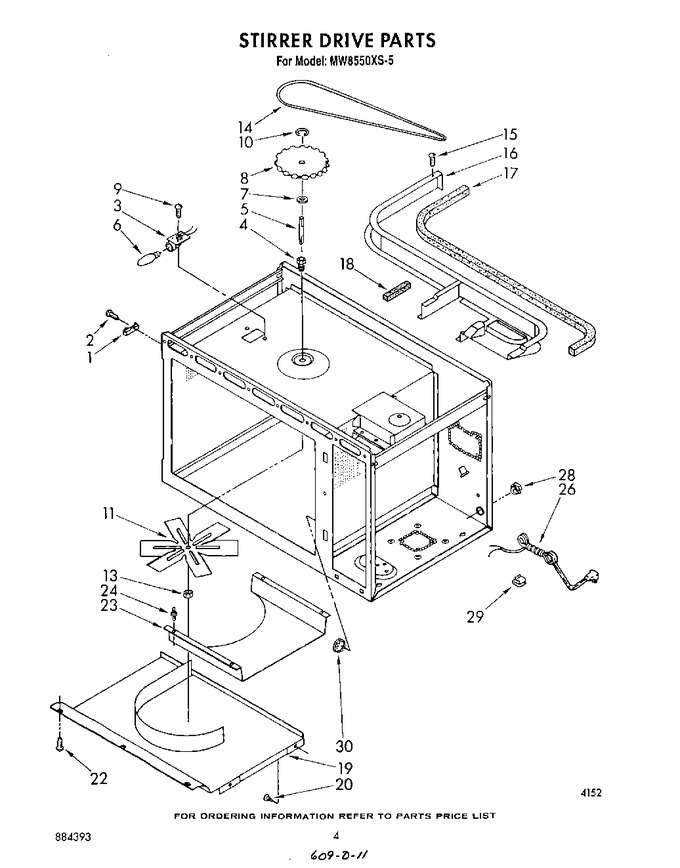

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 313855 | Thermal Fuse |
|
- | |||||
| 2 | 312713 | Screw 8-32 X 3/8 (3) |
|
- | |||||
| 3 | 330514 | Socket, Light |
|
- | |||||
| 4 | 312023 | Bushing, Stirrer |
|
- | |||||
| 5 | 312026 | Shaft, Stirrer |
|
- | |||||
| 6 | WP3395618 | Bulb, Light (Replaces: 313969) |
|
Immediately | $ 83.21 | ||||
| 7 | 312025 | Washer, Stirrer |
|
- | |||||
| 8 | 311923 | Pulley, |
|
- | |||||
| 9 | 312713 | Screw (2) |
|
- | |||||
| 10 | 311999 | ``e`` Ring |
|
- | |||||
| 11 | 313595 | Stirrer Blade |
|
- | |||||
| 13 | WP487939 | Nut 1/4-20 (Replaces: 311721) |
|
$ 8.62 | |||||
| 14 | WP313646 | Belt, Drive (Replaces: 313646) |
|
$ 88.73 | |||||
| 15 | 310423 | Fastener |
|
- | |||||
| 16 | 3147216 | Baffle, Air |
|
- | |||||
| 17 | 313750 | Seal, Foam |
|
- | |||||
| 18 | 313750 | Seal, Foam |
|
- | |||||
| 19 | 313563 | Cover, Stirrer |
|
- | |||||
| 20 | 313740 | Fastener, Cover (4) |
|
- | |||||
| 22 | 313816 | Screw, 8-32 X 1/2 (3) |
|
- | |||||
| 23 | 313735 | Plate, Tunning (includes No. 24) |
|
- | |||||
| 24 | 313739 | Support (4) |
|
- | |||||
| 26 | 661160 | Power, Cord |
|
- | |||||
| 28 | 311954 | Strain Relief, Bushing |
|
- | |||||
| 29 | 311311 | Clip, Wire (2) |
|
- | |||||
| 30 | WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 63.51 | ||||
| 30 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 54.01 | |||||
| 30 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 30 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 30 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 18.81 | |||||
| 30 | 591014 | Adhesive Loctite (1/3 Oz.) |
|
- | |||||
| 30 | WP75614 | Line, Splice (5) (Replaces: 309551) |
|
$ 51.81 | |||||
| 30 | 832987 | Built-in Kits (30``) |
|
- | |||||
| 30 | 832989 | Built-in Kits (27``) |
|
- | |||||
| 30 | 832991 | Built-in Kits (24``) |
|
- | |||||
| 30 | 832993 | Built-in Kits (wall Mount) |
|
- | |||||
| 30 | 313786 | Plug, Hole |
|
- | |||||
| 30 | 350806 | 18 Ga. 80~c Rating (yellow) |
|
- | |||||
| 30 | 10875 | Wire (16 Ga. 80 C Blue) |
|
Immediately | $ 20.64 | ||||
| 30 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 30 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 30 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 30 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 30 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 30 | 242826 | Wire, Splicing (25 Ft. Roll) 18 Ga. 80~ Rating (white) |
|
- | |||||
| 30 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 30 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 30 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 30 | 242832 | Wire, Splicing (25 Ft. Roll) 18 Ga. 80~ Rating (yellow 12 Ga. 150~c Rating) |
|
- | |||||
| 30 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 30 | 242829 | Wire, Splicing (25 Ft. Roll) 18 Ga. 80~ Rating (red) |
|
- | |||||
| 30 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 137.86 | |||||
| 30 | 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- | |||||
| 30 | DD81-03496A | Paint, Touch-up 1/2 Oz. (platinum) (Replaces: 72113) |
|
$ 117.11 | |||||
| 30 | WP261869 | Citrine White (microwave Liner) (Replaces: 261869) |
|
$ 27.83 | |||||
| 30 | 242860 | Blue Gray |
|
- | |||||
| 30 | 242757 | Paint, Touch-up 1 Oz. (oven Liner) (light Gray) |
|
- | |||||
| 30 | 8212471 | Bronzetone (Replaces: 242756) |
|
Immediately | $ 87.22 | ||||
| 30 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | ||||
| 30 | 261890 | Harvest Gold |
|
- | |||||
| 30 | 285365 | Toast |
|
- | |||||
| 30 | 285366 | Paint, Spray (13 Oz.) (platinum) |
|
- | |||||
| 30 | 786020 | Paint, Pressurized Spray (12 Oz.) (black) |
|
- | |||||
| 30 | 285006 | Spray Paint (black) 13 Oz. (Replaces: 830864) |
|
$ 59.89 | |||||
| 30 | 350942 | Primer |
|
$ 94.14 | |||||
| 30 | 350941 | Leveler (primer) |
|
- | |||||
| 30 | 261900 | Citrine White 5 Oz. (m/w Liner) |
|
$ 59.89 | |||||
| 30 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 30 | 978883 | Almond |
|
- | |||||
| 30 | 261891 | Harvest Gold |
|
- | |||||
| 30 | 285367 | Enamal, Toast (1 Qt. Uncut) |
|
- | |||||
| 30 | 285368 | Platinum |
|
- | |||||
| 30 | 786032 | Ebony (microwave) |
|
- | |||||
| 30 | 978849 | Cleaner, (8oz.) Black Glass |
|
$ 15.82 | |||||
| 30 | 1493 | Popper, Popcorn (microwave Only) |
|
- | |||||
| 30 | 1409 | Thermometer (microwave Only) |
|
Immediately | $ 76.27 | ||||
| 30 | 832985 | Rack, Bi-level |
|
- | |||||
| 30 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| LIT884393 | List, Repair Parts |
|
- | ||||||
| LIT3147210 | Tech Sheet |
|
- | ||||||
| LIT3148798 | Guide, Use & Care |
|
- | ||||||
| LIT313145 | Cookbook |
|
- |
