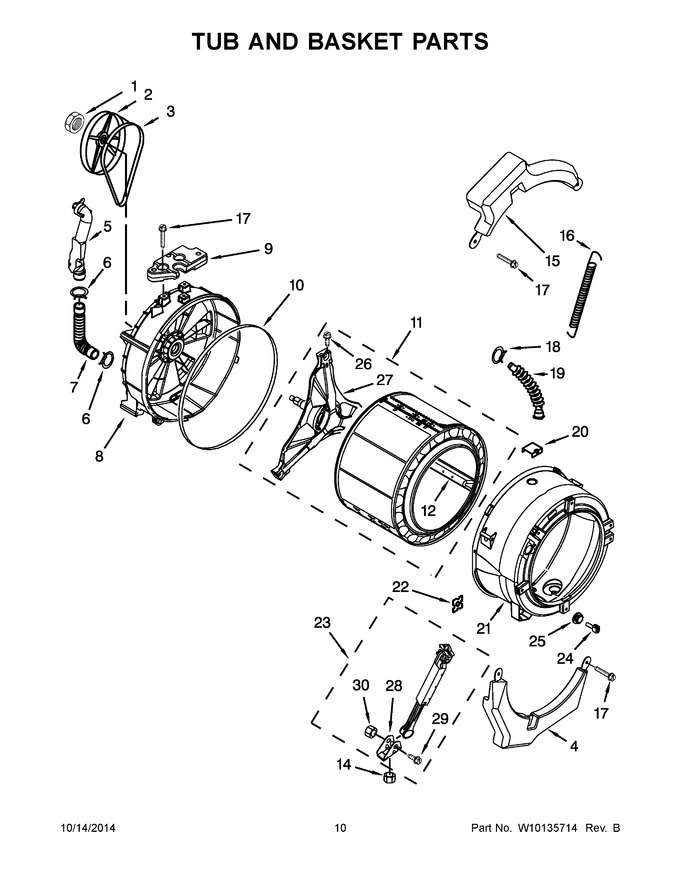

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10283361 | Nut, Pulley (Replaces: 8533999) |
|
Immediately | $ 74.76 | ||||
| 2 | WP8540088C | Pulley (Replaces: 8540088C) |
|
$ 185.53 | |||||
| 3 | WP8540101 | Belt, Drive (Replaces: 8540101) |
|
Immediately | $ 42.54 | ||||
| 4 | W10200297 | Counterweight, Front Lower (Replaces: 8540600) |
|
$ 318.23 | |||||
| 5 | W10112169 | Pipe, Ventilation |
|
$ 169.08 | |||||
| 6 | 8540010 | Clamp, Vent Hose |
|
$ 10.57 | |||||
| 7 | W11398765 | Hose, Exhaust (Replaces: 8540019) |
|
$ 28.52 | |||||
| 8 | 280251 | Tub, Rear (Replaces: W10112658) |
|
Immediately | $ 385.72 | ||||
| 9 | 8540602 | Counterweight, Rear |
|
- | |||||
| 10 | WPW10111158 | Gasket, Tub (Replaces: 8540090) |
|
Immediately | $ 93.68 | ||||
| 11 | 8540451 | Basket, Complete |
|
$ 381.84 | |||||
| 12 | WP8540456 | Baffle, Tub (Replaces: 8540456) |
|
$ 99.20 | |||||
| 14 | 8534084 | Nut, Shock Absorber Mounting |
|
$ 12.14 | |||||
| 15 | 8540598 | Counterweight, Front Upper |
|
- | |||||
| 16 | 280159 | Spring, Suspension (Replaces: W10010360) |
|
$ 100.89 | |||||
| 17 | W11685857 | Screw (Replaces: W10094780) |
|
$ 13.33 | |||||
| 18 | 3363365 | Clamp, Hose |
|
$ 10.16 | |||||
| 19 | WP8540015 | Hose, Exhaust (Replaces: 8540015) |
|
Immediately | $ 39.55 | ||||
| 20 | WP8540092 | Clamp, Tub (Replaces: 8540092) |
|
$ 7.17 | |||||
| 21 | 280251 | Tub, Front (Replaces: W10112659) |
|
Immediately | $ 385.72 | ||||
| 22 | WP8182512 | Nut, Push-in (Replaces: 8540072) |
|
Immediately | $ 6.57 | ||||
| 23 | W10739670 | Shock Absorber (Replaces: W10084740) |
|
$ 330.39 | |||||
| 24 | WPW10467289 | Negative Thermistor Control (Replaces: 8540226) |
|
Immediately | $ 43.02 | ||||
| 25 | W11590578 | Seal, Rubber (Replaces: 8540766) |
|
Immediately | $ 7.53 | ||||
| 26 | WP8540382 | Screw (Replaces: 8540382) |
|
$ 6.57 | |||||
| 27 | 8540457 | Crosspiece Assembly |
|
- | |||||
| 28 | 8540940 | Bracket, Shock Absorber Mounting |
|
$ 11.48 | |||||
| 29 | 8540841 | Bolt, Shock Bracket |
|
- | |||||
| 30 | 8540842 | Nut, Shock Brkt. |
|
- |
