SELECT A DIAGRAM

01 - Top And Cabinet Parts


02 - Door And Latch Parts


03 - Control Panel Parts

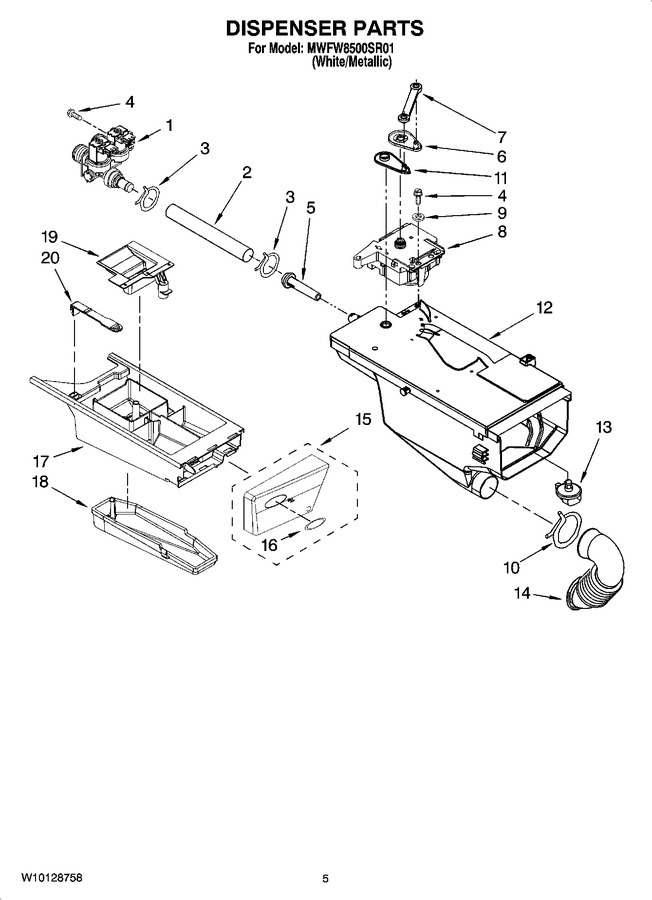

04 - Dispenser Parts


05 - Pump And Motor Parts


06 - Tub And Basket Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8540751		Valve, Inlet   (Replaces: 8540751)			Immediately	$ 76.65
2	W10803052		Hose, Valve To Dispenser   (Replaces: 8540065)				$ 14.40
3	WP596669		Clamp, Hose   (Replaces: 370450)			Immediately	$ 8.82
4	WP8540282		Screw   (Replaces: 8540282)				$ 12.14
5	WP8183181		Nozzle, Inlet   (Replaces: 8540042)				$ 94.82
6	WP8540393		Cam, Actuator   (Replaces: 8540393)				$ 7.55
7	WP8540394		Lever, Water Distribution   (Replaces: 8540394)				$ 7.55
8	WPW10143586		Actuator   (Replaces: 8540041)			Immediately	$ 123.70
9	8526417		Washer   (Replaces: VS611)				$ 14.64
10	W11622908		Clamp, Hose   (Replaces: 8281276)				$ 23.33
11	WP8540395		Connection, Lever   (Replaces: 8540395)				$ 7.30
12	8540058		Dispenser				$ 77.13
13	WP8540053		Nozzle, Distribution   (Replaces: 8540053)				$ 104.71
14	W11366227		Hose, Dispenser To Tub   (Replaces: 8540063)			Immediately	$ 23.35
15	8574948		Handle, Drawer		Appelez-nous	-
16	8529540		Medallion		Appelez-nous	-
17	WP8540402		Drawer, Detergent   (Replaces: 8540402)			Immediately	$ 137.17
18	WP8540399		Cover, Detergent Drawer   (Replaces: 8540399)				$ 78.59
19	WP8540429		Siphon, Bleach/softener   (Replaces: 8540429)				$ 16.01
20	8540400		Hook, Drawer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
