Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 A3189362 Gasket, Foam Appelez-nous -
2 B8386602 Gasket Appelez-nous -
3 C8976102 Gasket, Air Block Appelez-nous -
4 A1047901 Shim Appelez-nous -
5 D7865914 Cover, Evap. Appelez-nous -
6 D7821109 Inner Fr Back Pnt Appelez-nous -
7 M0580003 Grommet Appelez-nous -
8 D7838302 Cover, Supply Air Appelez-nous -
9 10164812 Grille-control Appelez-nous -
10 10164702 Control-air Appelez-nous -
11 M0322202 Tie Wire Appelez-nous -
12 67006425 Screw, Sm   (Replaces: M0209616) In-Stock Immediately $ 7.30

13 M0580002 Grommet A Appelez-nous -
14 A3127411 Ext, Fill Tube Appelez-nous -
15 10098801 Rivet Appelez-nous -
16 D7865812 Evap. Shield Appelez-nous -
17 D7850202 Drip Tray Pnt. Appelez-nous -
18 10426801 Clip, Air Tunnel Appelez-nous -
19 10629601 Block, Air Coil (left) Appelez-nous -
20 10629001 Block, Air Coil (right) Appelez-nous -
21 12017806 Kit, Defrost Thermostat Appelez-nous -
22 W11673433 Clip, Evap Heater   (Replaces: 10428101) Special Order $ 148.18

23 WP12049801 Heater, Evap   (Replaces: 12049801) Special Order $ 149.50

24 R0170055 Assy,low Side(sxs 22) Special Order $ 322.79

25 WP2264462 Grommet   (Replaces: A1017202) In-Stock Immediately $ 46.17

26 A3189335 Gasket Foam Appelez-nous -
27 12033101 Fan-evap Special Order $ 35.30

28 C8881301 Brkt Evap Fan Appelez-nous -
29 WPC8891605 Motor, Evap Fan   (Replaces: C8891605) Special Order $ 344.82

30 D7767705 Brkt, Mtr Shroud Appelez-nous -
31 WP90767 Screw, Sm   (Replaces: M0224416) In-Stock Immediately $ 8.25

32 B8324801 Clip Ground Appelez-nous -
33 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

34 C8976201 Clamp Appelez-nous -
35 12016501 Deflector-air Appelez-nous -
36 M0560005 Support Appelez-nous -
37 10527401 Clip, Evap Appelez-nous -
38 10623003 Clip, Evaporator Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

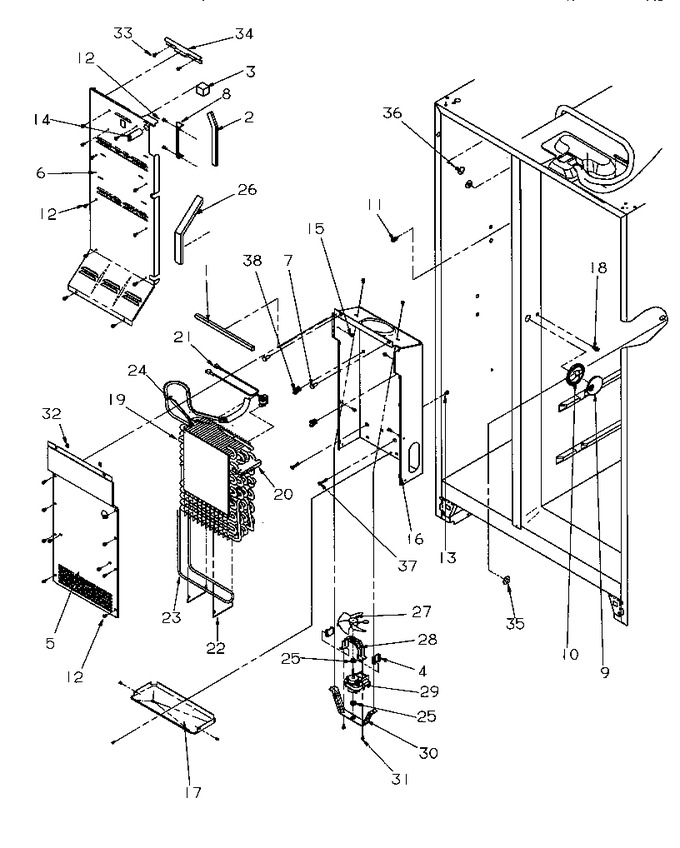

Diagram for SSD21SL (BOM: P1193901W L)
