Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10283361 Nut, Pulley   (Replaces: 8533999) In-Stock Immediately $ 79.11

2 WP8182650 Pulley   (Replaces: W10003730) In-Stock Immediately $ 187.69

3 WPW10388414 Belt, Drive   (Replaces: W10116915) In-Stock Immediately $ 53.86

4 WPW10008880 Counterweight, Front (2)   (Replaces: W10008880) Special Order $ 175.92

5 W10003500 Pipe, Ventilation Special Order $ 55.87

6 8540010 Clamp, Vent Hose Special Order $ 11.18

7 WP8181743 Hose, Exhaust   (Replaces: W10004330) Special Order $ 108.37

8 W10004170 Tub, Rear (includes Items 10, 22, 26 & 27) Appelez-nous -
9 W10008870 Counterweight, Rear Appelez-nous -
10 WPW10036350 Gasket, Tub   (Replaces: W10036350) Special Order $ 92.02

11 WPW10040480 Basket, Complete   (Replaces: W10040480) Special Order $ 605.78

12 W10002770 Baffle, Tub Appelez-nous -
13 WPW10426377 Element, Heating   (Replaces: 8540323) Special Order $ 303.81

14 WPW10467289 Negative Thermistor Control   (Replaces: 8540226) In-Stock Immediately $ 47.80

15 W10822553 Shock Absorber   (Replaces: W10015830) In-Stock Immediately $ 83.35

16 W10135004 Spring, Suspension (set Of 2)   (Replaces: W10127411) In-Stock Immediately $ 83.60

17 W11685857 Bolt, Counterweight Mtg.   (Replaces: W10094780) Special Order $ 14.10

18 3363365 Clamp, Hose Special Order $ 10.75

19 WP8540015 Hose, Exhaust   (Replaces: 8540015) In-Stock Immediately $ 41.85

20 WP8540092 Clamp, Tub   (Replaces: 8540092) Special Order $ 7.59

21 W10004180 Tub, Front (includes Items 10 & 22) Appelez-nous -
22 WP8182512 Nut, Push-in   (Replaces: 8540072) In-Stock Immediately $ 6.95

23 W10003600 Air Trap Appelez-nous -
24 WPW10250553 O-ring, Air Trap   (Replaces: W10004270) Special Order $ 7.19

25 W11230114 Screw   (Replaces: 8540513) Special Order $ 13.28

26 W11230114 Screw   (Replaces: 8540880) Special Order $ 13.28

27 W10250558 Bracket, Heating Element   (Replaces: W10015240) Special Order $ 12.41


    View Diagram in Separate Window     Print Icon   Print Part List

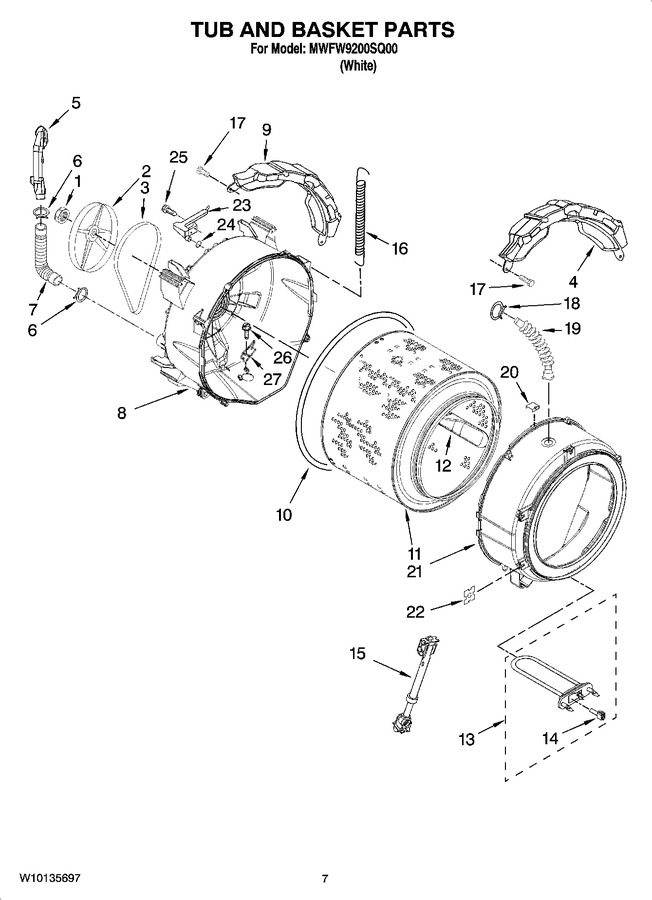

Diagram for MWFW9200SQ00
