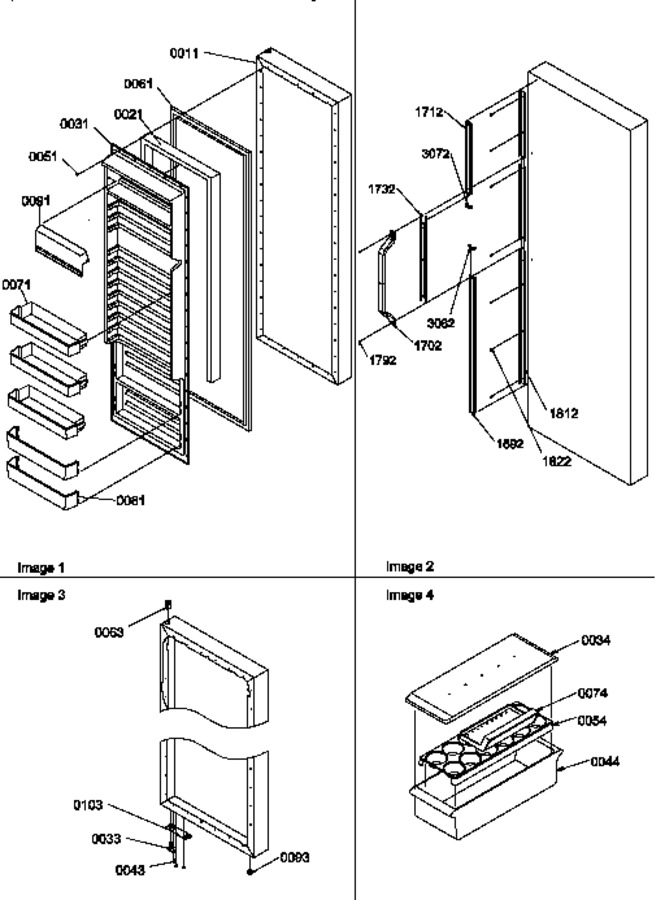

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10937901L		Assy Ref. Door Fm		Appelez-nous	-
11	10984605		Insert, L Facade		Appelez-nous	-
21	B0523563		Insulation Ft. K		Appelez-nous	-
31	10946301		Liner, Ref Door		Appelez-nous	-
33	R0181181		Closure, Door (blk)   (Replaces: 12113204)			Immediately	$ 7.55
34	10436404		Lid, Utility				$ 60.85
43	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
44	10423128		Bin-utility		Appelez-nous	-
51	M0219730		Screw				$ 7.65
54	10436505		Tray, Egg		Appelez-nous	-
61	10359705		Gasket, Door (w Ref)		Appelez-nous	-
63	10393802		Bushing, Door (wht)		Appelez-nous	-
71	10937305		Bucket-ref Dr		Appelez-nous	-
74	10310901		Tray, Butter		Appelez-nous	-
81	10580106		Shelf, Ref Door		Appelez-nous	-
91	10418506		Door, Dairy		Appelez-nous	-
93	M0310338		Plug Button Almond		Appelez-nous	-
103	10161804		Stop-l Door		Appelez-nous	-
1692	10810510		Trim, Bot Ref Dr L		Appelez-nous	-
1702	12139302		Handle, Door (almond)		Appelez-nous	-
1712	10810310		Trim-l Top Ref Dr		Appelez-nous	-
1732	10810402		Trim, L Ctr Door		Appelez-nous	-
1792	R9800670		Screw, Mounting   (Replaces: M0223230)				$ 10.58
1812	10852214		Retainer-ref Trim		Appelez-nous	-
1822	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 8.43
3062	10953113		Insert, Door Trim		Appelez-nous	-
3072	10953114		Insert, Trim (almond)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
