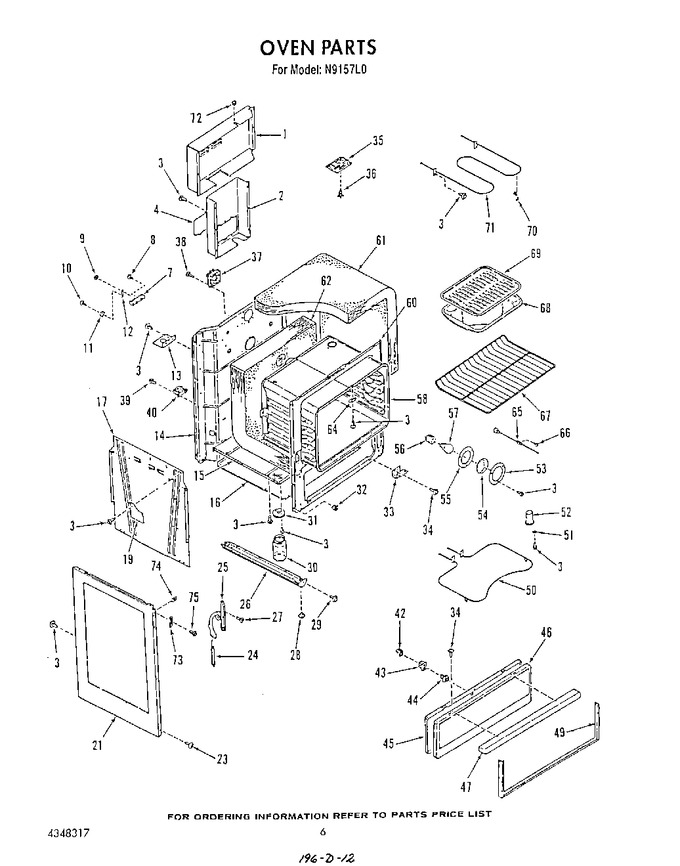

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4338359		Wire Cover, Rear - Upper		Appelez-nous	-
2	4336825		Wire Cover, Lower Rear		Appelez-nous	-
3	WP681414		Screw 10-16x7/16   (Replaces: 4335248)			Immediately	$ 7.62
4	4336826		Plate, Access		Appelez-nous	-
7	WP8203546		Block, Terminal   (Replaces: 4326821)			Immediately	$ 27.12
8	4331572		Screw, No.10-32x1		Appelez-nous	-
9	4323653		Nut, Hex 10-32		Appelez-nous	-
10	4331573		Screw, 10-32x7/16``		Appelez-nous	-
11	4327921		Washer		Appelez-nous	-
12	4335219		Strap, Ground		Appelez-nous	-
13	4335223		Plate, Mounting		Appelez-nous	-
14	4338228		Back, Main		Appelez-nous	-
15	4337573		Retainer, Bottom Insulation		Appelez-nous	-
16	4337283		Bottom		Appelez-nous	-
17	4337266		Retainer, Side Insulation		Appelez-nous	-
19	4337217		Wire Cover		Appelez-nous	-
21	4342979		Side (almond)		Appelez-nous	-
21	4342652		Side (black)		Appelez-nous	-
23	4331822		Screw No.8x5/8		Appelez-nous	-
24	4337386		Spring, Door (2)		Appelez-nous	-
25	4336783		Hinge-door (right)				$ 44.64
25	4336784		Hinge-door (left)				$ 80.99
26	4338262		Base W/levelers		Appelez-nous	-
27	4336631		Screw		Appelez-nous	-
28	4334800		Levelers, Leg (4)		Appelez-nous	-
29	4323884		Screw, 10-32x17/32		Appelez-nous	-
30	WPY707869		Jar, Grease (2)   (Replaces: 4335916)				$ 64.50
31	4335900		Lid, Jar (2)		Appelez-nous	-
32	4331381		Spacer, Expansion Nut - (8)		Appelez-nous	-
33	4337416		Hinge		Appelez-nous	-
34	4332521		Screw, No.10-16x1/2		Appelez-nous	-
35	4338265		Circuit Board W/relay & Transf.		Appelez-nous	-
36	4336562		Spacer, Circuit Board		Appelez-nous	-
37	4338418		Fan		Appelez-nous	-
38	4335220		Screw No.6-32x7/8		Appelez-nous	-
39	4336048		Screw, No.6-20 X 3/8		Appelez-nous	-
40	4323673		Ballast		Appelez-nous	-
42	4337417		Bracket, Catch		Appelez-nous	-
43	4337418		Catch		Appelez-nous	-
44	4337419		Strike		Appelez-nous	-
45	4342631		Lining, Lower Door		Appelez-nous	-
46	4342632		Panel, Lower Door		Appelez-nous	-
47	4336754		Handle		Appelez-nous	-
49	4342576		Frame, Lower Door		Appelez-nous	-
50	4334928		Element, Bake (240 Volt)				$ 80.01
50	4334929		Element, Bake (208 Volt (opt.))		Appelez-nous	-
51	4337453		Washer		Appelez-nous	-
52	4337314		Tube, Vent		Appelez-nous	-
53	4324482		Retainer, Light Lens		Appelez-nous	-
54	4324415		Lens, Light		Appelez-nous	-
55	4324481		Seal, Lens		Appelez-nous	-
56	W10856866		Holder, Light Bulb   (Replaces: 4323560)				$ 6.80
57	8009		Lamp   (Replaces: 4338591)			Immediately	$ 16.80
58	4337959		Body, Oven		Appelez-nous	-
60	4337446		Frame, Front		Appelez-nous	-
61	4336990		Insulation, Top & Sides		Appelez-nous	-
62	4353609		Insulation, Bottom & Back		Appelez-nous	-
64	4329206		Cover		Appelez-nous	-
65	4337170		Sensor		Appelez-nous	-
66	4335339		Screw No.6-20x3/8		Appelez-nous	-
67	4334809		Rack, Oven (2)				$ 54.59
68	4396923		Pan, Broiler   (Replaces: 4336602)			Immediately	$ 54.64
69	4396923		Broiler, Grid Pan   (Replaces: 4334897)			Immediately	$ 54.64
70	4338587		Support, Broil Element		Appelez-nous	-
71	WP4334925		Element, Broil (208 Volt (opt.))   (Replaces: 4337192)				$ 139.19
71	WP4334925		Element, Broil (240 Volt)   (Replaces: 4337191)				$ 139.19
72	4342670		Bushing, Split		Appelez-nous	-
73	4337625		Cleat		Appelez-nous	-
74	4324011		Speed Nut		Appelez-nous	-
75	W10850756		Screw   (Replaces: 4323777)				$ 7.38
