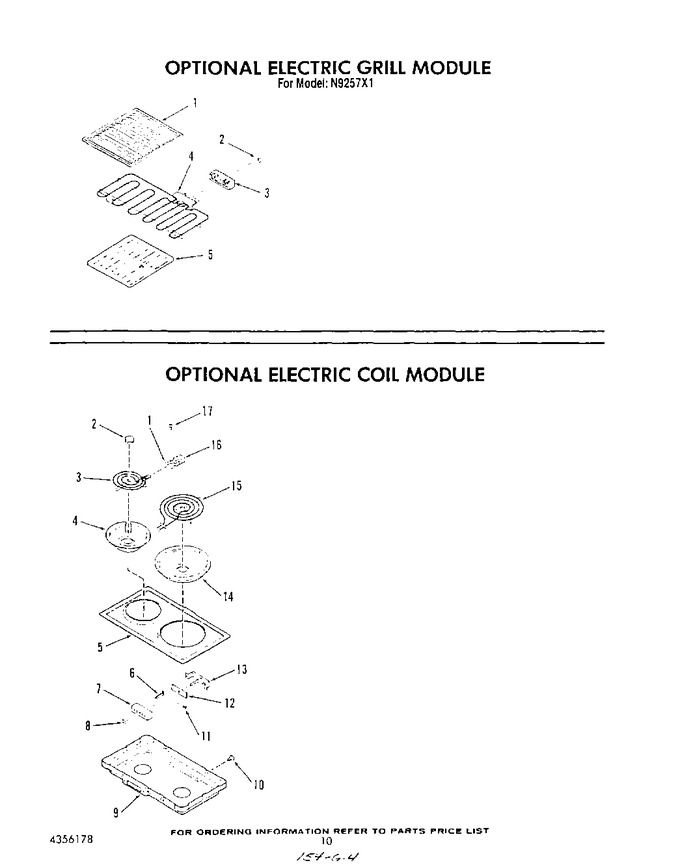

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP4332752		Bracket-term. Blk.   (Replaces: 4332752)				$ 7.18
1	4335911		Grate-grill		Appelez-nous	-
2	4336259		Clip - Push On		Appelez-nous	-
2	4332691		Medallion (2)		Appelez-nous	-
3	WPY04100165		Elmnt-surface-6``   (Replaces: 4334592)			Immediately	$ 56.92
3	4336252		Block, Terminal		Appelez-nous	-
4	WPW10196406		Bowl, 6``   (Replaces: 4352552)			Immediately	$ 12.05
4	4337403		Element - Grill		Appelez-nous	-
5	4336807		Grid, (2)		Appelez-nous	-
5	4335980		Top, Main (chrome)		Appelez-nous	-
5	4336458		Top, Main (almond)		Appelez-nous	-
6	4330875		Pin, Terminal (4)		Appelez-nous	-
7	4335910		Block, Terminal		Appelez-nous	-
8	4323399		Nut, Speed		Appelez-nous	-
9	4336605		Pan, Module		Appelez-nous	-
10	4324647		Screw, No.8-32 X 3/8		Appelez-nous	-
11	4323479		Screw No.8-32 X 3/16		Appelez-nous	-
12	4330873		Insulator		Appelez-nous	-
13	4335944		Bracket - Term.		Appelez-nous	-
14	W10196405RW		Bowl 8``   (Replaces: 4352553)			Immediately	$ 19.64
15	WP3177565		Element 8``   (Replaces: 4334589)				$ 164.32
16	330031		Terminal Block   (Replaces: 4342636)			Immediately	$ 17.93
17	4327985		Screw, No.7-32 X 5/16		Appelez-nous	-
