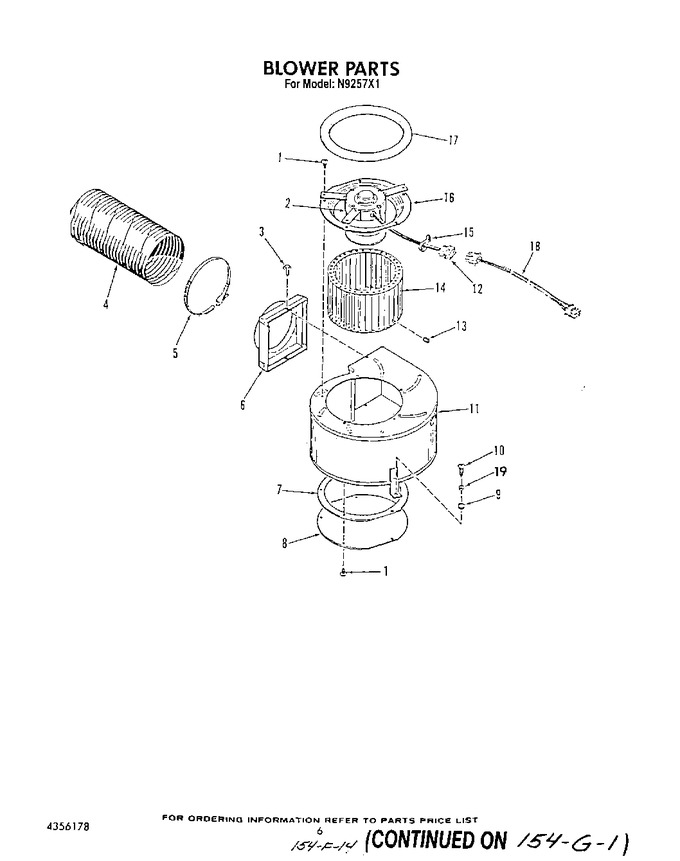

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4323467		Screw, No.8 X 3/8		Appelez-nous	-
2	4337910		Motor		Appelez-nous	-
3	W10850756		Screw, No.10-32 X 7/16   (Replaces: 4331106)				$ 7.38
4	4335913		Vent Tubing, Flexible		Appelez-nous	-
5	4335914		Clamp, Tube		Appelez-nous	-
6	4336822		Transition		Appelez-nous	-
7	4337098		Seal, Rear Cover		Appelez-nous	-
8	4337244		Cover, Rear		Appelez-nous	-
9	4337097		Grommet		Appelez-nous	-
10	4323387		Screw No.10 X 3/4		Appelez-nous	-
11	4337912		Housing, Blower		Appelez-nous	-
12	4337909		Disconnect		Appelez-nous	-
13	4336243		Screw, Set, 5/16 No.24 X 3/8		Appelez-nous	-
14	4337911		Wheel, Blower		Appelez-nous	-
15	4337243		Clamp, Wire		Appelez-nous	-
16	4337093		Ring, Inlet		Appelez-nous	-
17	4337216		Gasket, Blower		Appelez-nous	-
18	4337914		Harness, Wire		Appelez-nous	-
19	4338274		Eyelet		Appelez-nous	-
