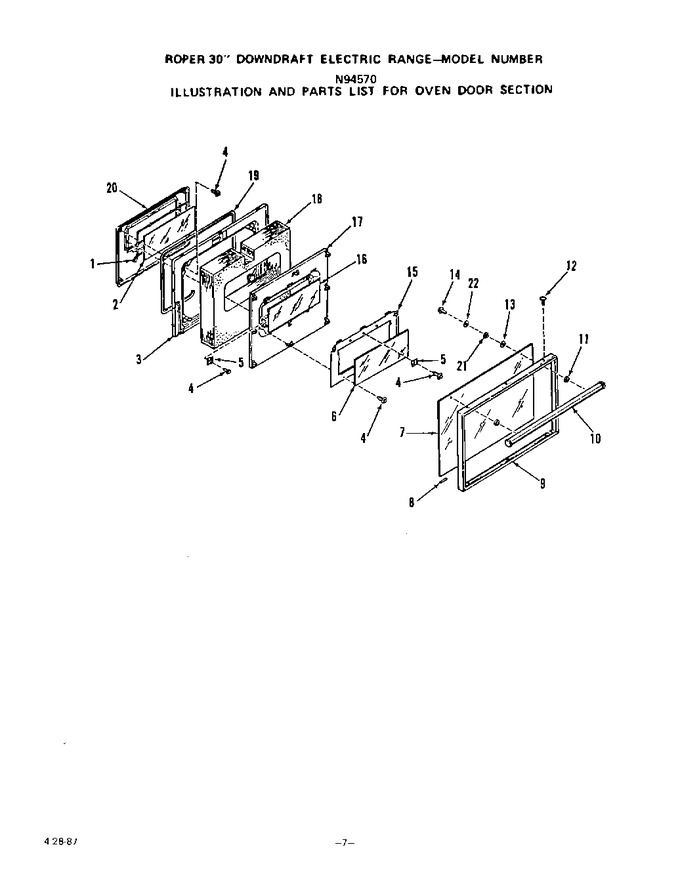

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	302935		Seal-inner Glass		Appelez-nous	-
2	312426		Inner Glass-oven Door		Appelez-nous	-
3	331948		Lining-oven Door		Appelez-nous	-
4	327320		Screw 10-16x7/16``		Appelez-nous	-
5	326009		Retainer-door Glass		Appelez-nous	-
6	326088		Intermediate Glass-oven Door		Appelez-nous	-
8	112370		Cushion (3 Req)		Appelez-nous	-
9	336734		Frame-oven Door		Appelez-nous	-
10	332452		Handle		Appelez-nous	-
11	DE81-05147A		Spacer, Door Handle   (Replaces: 107158)				$ 205.79
12	331704		Screw		Appelez-nous	-
13	333014		Washer		Appelez-nous	-
14	300864		Screw 10-32x3/4``		Appelez-nous	-
15	328615		Mounting Plate-glass		Appelez-nous	-
16	336632		Center Glass-oven Door		Appelez-nous	-
17	331935		Retainer-oven Door Insulation		Appelez-nous	-
18	334913		Insulation-oven Door		Appelez-nous	-
19	337670		Gasket-oven Door		Appelez-nous	-
20	333951		Plug-oven Door Lining		Appelez-nous	-
21	333015		Spacer-glass		Appelez-nous	-
22	99279		Washer		Appelez-nous	-
