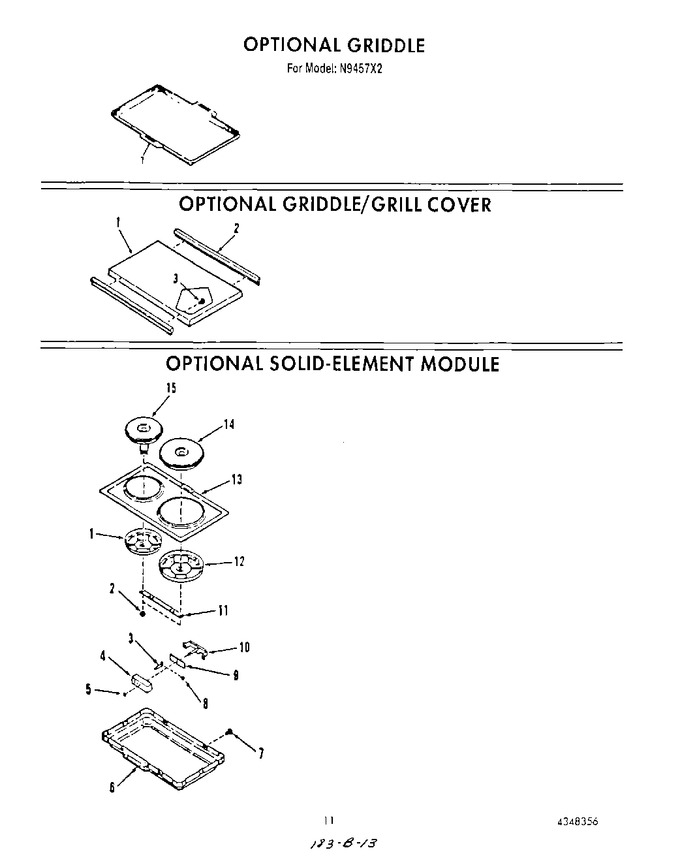

08 - Electric Grill , Electric Coil


09 - Griddle , Griddle/grill Cover


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4335942		Clamp		Appelez-nous	-
1	4336005		Cover		Appelez-nous	-
1	4336453		Griddle		Appelez-nous	-
2	4336006		Handle, (left/right)		Appelez-nous	-
2	4336026		Nut, Mount. (2)		Appelez-nous	-
3	4330875		Pin, Terminal (4)		Appelez-nous	-
3	4336235		Screw, No. 6 X 1/4		Appelez-nous	-
4	4335910		Block, Terminal		Appelez-nous	-
5	4323399		Nut, Speed		Appelez-nous	-
6	4336604		Pan-module		Appelez-nous	-
7	4324647		Screw, No.8-32 X 3/8		Appelez-nous	-
8	4323479		Screw No.8-32 X 3/16		Appelez-nous	-
9	4330873		Insulator		Appelez-nous	-
10	4335944		Bracket		Appelez-nous	-
11	4335993		Strap, Element		Appelez-nous	-
12	4335941		Clamp, Elmnt.		Appelez-nous	-
13	4335938		Top, Main (chrome)		Appelez-nous	-
13	4336457		Top, Main (almond)		Appelez-nous	-
14	WP3147132		Elmnt. - Large   (Replaces: 4335940)				$ 286.33
15	WP3147131		Elmnt. - Small   (Replaces: 4335939)				$ 257.00

    View Diagram in Separate Window       Print Part List
