Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10547502LQ Assy Ref Dr Appelez-nous -
2 10521601 Liner, Ref. Door Appelez-nous -
3 10520404 Shelf, Chiller Appelez-nous -
4 10521804 Shelf, Refrig. Door Appelez-nous -
5 10525101 Shelf, Dairy Appelez-nous -
6 10520204 Ref Dr Bucket Appelez-nous -
7 B0523563 Insulation Ft. K Appelez-nous -
8 10359701 Gasket, Door (w Ref) Appelez-nous -
9 M0219730 Screw Special Order $ 7.65

10 10527311 Door-dairy Appelez-nous -
11 10310901 Tray, Butter Appelez-nous -
12 10423118 Bin, Egg Appelez-nous -
13 10436504 Tray, Egg Appelez-nous -
14 10202001 Clip, Retainer Appelez-nous -
15 10436404 Lid, Utility Special Order $ 60.85


    View Diagram in Separate Window     Print Icon   Print Part List

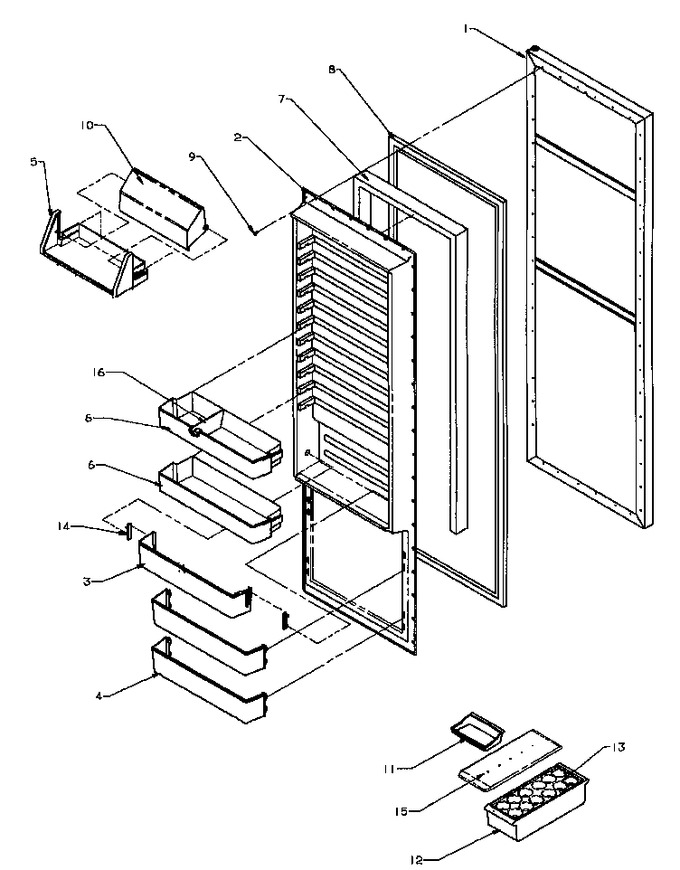

Diagram for SSD25NB2L (BOM: P1162434W L)
