Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4323467 Screw, No.8 X 3/8 Appelez-nous -
2 4337910 Motor Appelez-nous -
3 W10850756 Screw, No.10-32 X 7/16   (Replaces: 4343109) Special Order $ 7.38

4 4335913 Vent Tubing, Flexible Appelez-nous -
5 4343110 Clamp, Tube Appelez-nous -
6 4336822 Transition Appelez-nous -
7 4337098 Seal, Rear Cover Appelez-nous -
8 4337244 Cover, Rear Appelez-nous -
9 4337097 Grommet Appelez-nous -
10 4323387 Screw No.10 X 3/4 Appelez-nous -
11 4337912 Housing, Blower Appelez-nous -
12 4337909 Disconnect Appelez-nous -
13 4336243 Set Screw, No.5/16-24 X 3/8 Appelez-nous -
14 4337911 Impellor Appelez-nous -
15 4337243 Clamp, Wire Appelez-nous -
16 4354954 Ring, Inlet Appelez-nous -
17 4337216 Gasket, Blower Appelez-nous -
18 4337914 Harness, Wire Appelez-nous -
19 4338274 Eyelet Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

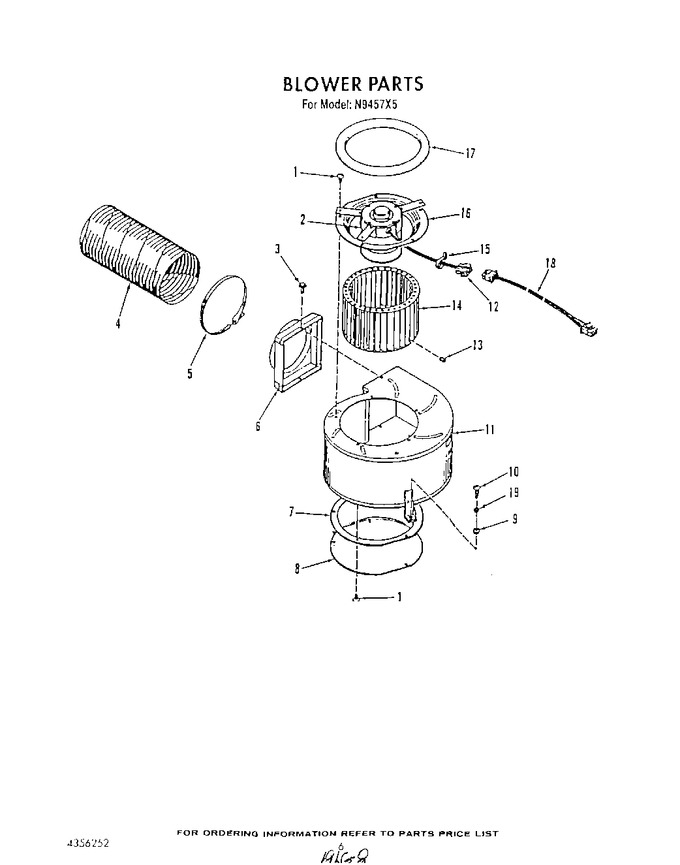

Diagram for N9457^5
