SELECT A DIAGRAM

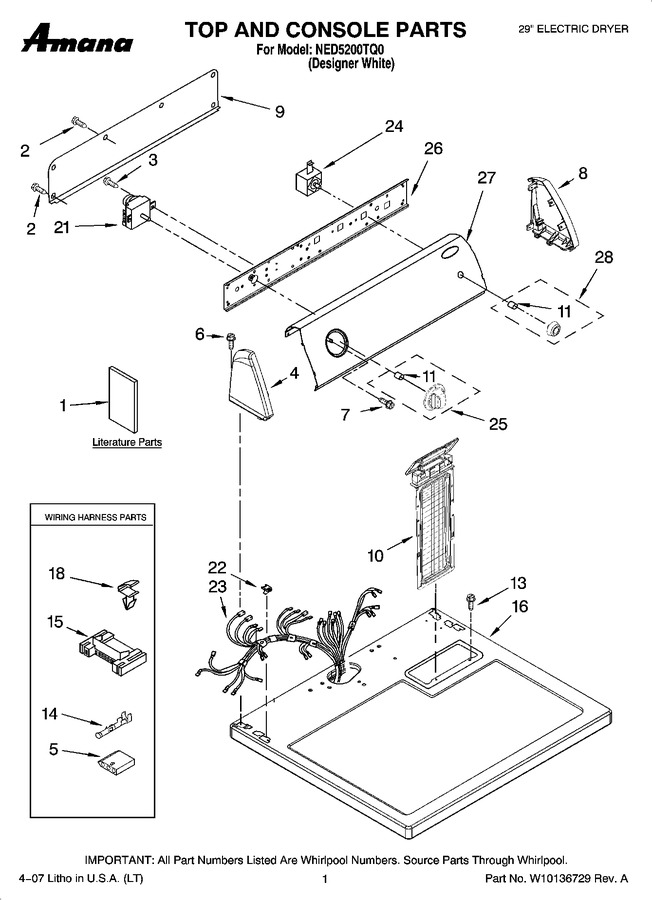

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10088970		Installation Instructions		Appelez-nous	-
1	8576793		Wiring Diagram		Appelez-nous	-
1	W10088771		Use & Care Guide		Appelez-nous	-
1	W10089173		Sheet, Cycle Feature		Appelez-nous	-
2	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
3	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
4	8271365		Cap, End (l.h.)		Appelez-nous	-
5	3936144		Connector				$ 21.22
6	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
7	3400859		Screw, Grounding   (Replaces: 8533951)				$ 13.88
8	8271359		Cap, End (r.h.)		Appelez-nous	-
9	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
10	W11778253		Screen, Lint   (Replaces: 8558463)			Immediately	$ 54.63
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
15	3395683		Connector (motor)			Immediately	$ 54.45
16	8557930		Top		Appelez-nous	-
18	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
21	WP8299774		Timer, 60 Hz.   (Replaces: 8299774)				$ 377.29
22	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
23	WPW10450292		Harness, Wiring   (Replaces: 8576500)				$ 279.32
24	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 26.66
25	W10110048		Timer-knob Assembly		Appelez-nous	-
26	8271418		Bracket, Control				$ 57.15
27	W10086674		Panel, Control		Appelez-nous	-
28	WPW10110049		Knob, Push-to-start   (Replaces: W10110049)				$ 52.86

    View Diagram in Separate Window       Print Part List
