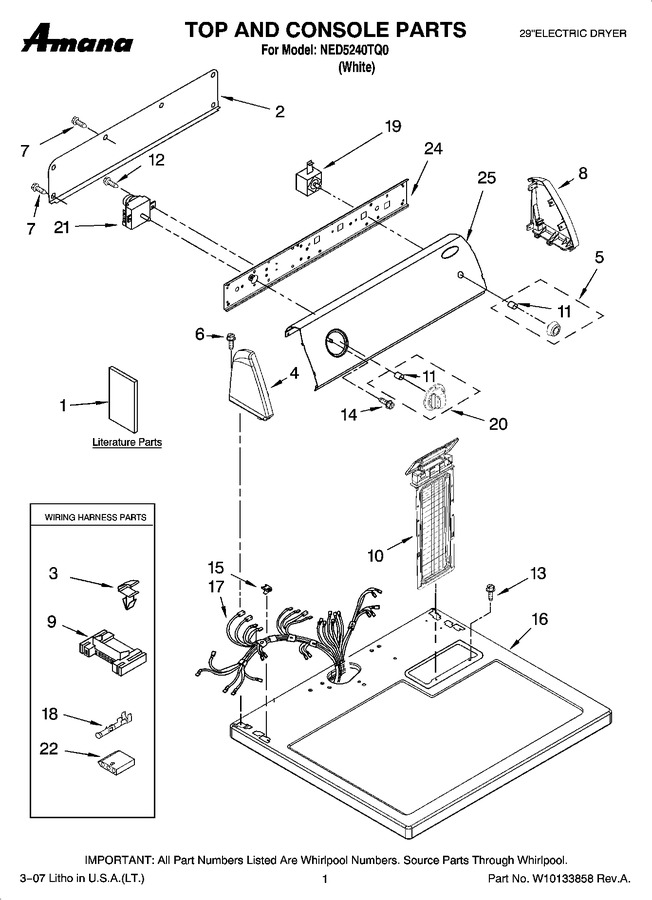

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10088771		Use & Care Guide		Appelez-nous	-
1	8576793		Wiring Diagram		Appelez-nous	-
1	W10088970		Installation, Installation		Appelez-nous	-
1	W10089173		Sheet, Cycle Feature		Appelez-nous	-
2	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
3	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
4	8271365		Cap, End (l.h.)		Appelez-nous	-
5	8271365		White		Appelez-nous	-
5	WPW10110049		Knob, Push-to-start   (Replaces: W10110049)				$ 52.86
6	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
7	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
8	8271359		Cap, End (r.h.)		Appelez-nous	-
9	3395683		Housing, Connector (motor)			Immediately	$ 54.45
10	W11778253		Screen, Lint   (Replaces: 8558463)			Immediately	$ 54.63
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	3400859		Screw, Grounding   (Replaces: 8533951)				$ 13.88
15	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
16	8557930		Top		Appelez-nous	-
17	WPW10450292		Harness, Wiring   (Replaces: 8576500)				$ 279.32
18	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
19	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 26.66
20	W10110048		Timer-knob		Appelez-nous	-
21	WP8299778		Timer, 60 Hz.   (Replaces: 8299778)			Immediately	$ 232.09
22	3936144		Connector				$ 21.22
24	8271418		Bracket, Control				$ 57.15
25	W10086672		Panel Control		Appelez-nous	-
