01 - Cabinet Parts

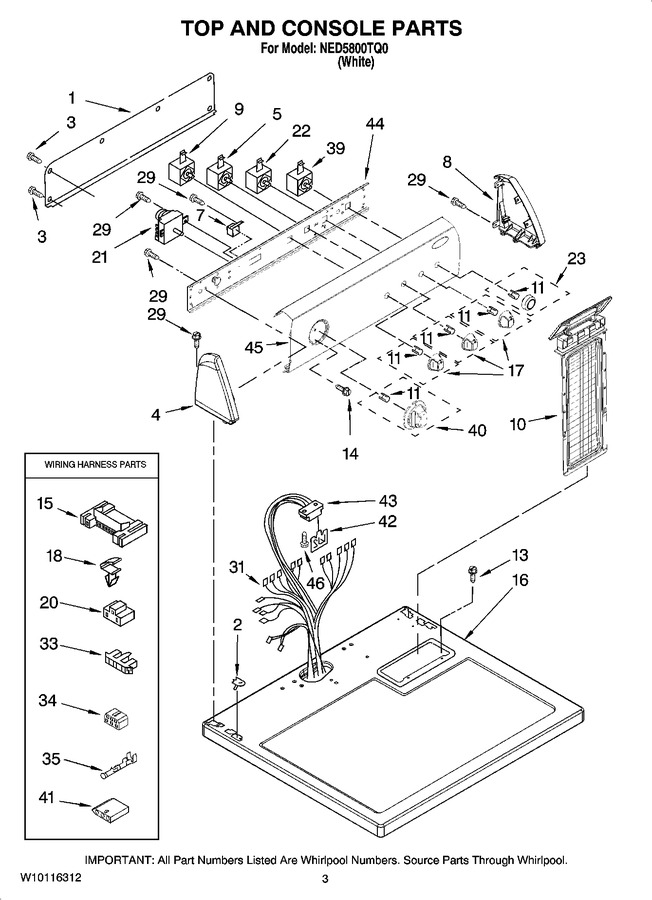

02 - Top And Console Parts
03 - Bulkhead Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10103406 | Panel, Rear Console (Replaces: 8274261) |
|
$ 128.87 | |||||
| 2 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 7.39 | |||||
| 3 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 4 | 8271365 | Cap, End (l.h.) (white) |
|
- | |||||
| 5 | 3405154 | Switch, Wrinkle Shield |
|
$ 152.88 | |||||
| 7 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 127.67 | |||||
| 8 | 8271359 | Cap, End (r.h.) (white) |
|
- | |||||
| 9 | WP8578352 | Switch, Temperature (Replaces: 8578352) |
|
$ 226.52 | |||||
| 10 | W11778253 | Screen, Lint (white) (Replaces: 8558463) |
|
Immediately | $ 52.03 | ||||
| 11 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.81 | ||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.06 | ||||
| 14 | 3400859 | Screw, Grounding (Replaces: 8533951) |
|
$ 13.22 | |||||
| 15 | 3395683 | Connector (motor) |
|
Immediately | $ 51.86 | ||||
| 16 | 8557930 | Top (white) |
|
- | |||||
| 17 | WPW10110047 | Knob, Control (3) (white) (Replaces: W10110047) |
|
$ 52.88 | |||||
| 18 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 7.79 | |||||
| 20 | 3401144 | Connector, (pts Relay) |
|
$ 12.20 | |||||
| 21 | WP3406725 | Timer, 60 Hz. (Replaces: 3406725) |
|
$ 368.58 | |||||
| 22 | 3405152 | Switch, End Of Cycle |
|
$ 131.07 | |||||
| 23 | WPW10110049 | Knob, Push-to-start (white) (Replaces: W10110049) |
|
$ 50.34 | |||||
| 29 | WP90767 | Screw, Mounting (8-18 X 5/16) (Replaces: 8533971) |
|
Immediately | $ 7.82 | ||||
| 31 | 8576545 | Harness, Wiring |
|
- | |||||
| 33 | 3397269 | Connector, Timer |
|
$ 25.55 | |||||
| 34 | 3347243 | Connector 6-circuit |
|
- | |||||
| 35 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 7.67 | |||||
| 39 | WP3398094 | Switch, Push-to-start (Replaces: 3398094) |
|
Immediately | $ 88.09 | ||||
| 40 | W10110048 | Timer Knob Assembly (white) |
|
- | |||||
| 41 | 3936144 | Connector |
|
$ 20.21 | |||||
| 42 | WPW10476828 | Control, Electronic (Replaces: 8558178) |
|
Immediately | $ 314.22 | ||||
| 43 | 3391885 | Connector, Edge |
|
$ 86.40 | |||||
| 44 | 8271418 | Bracket, Control |
|
$ 57.15 | |||||
| 45 | W10086671 | Panel, Control (white) |
|
- | |||||
| 46 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.85 |
