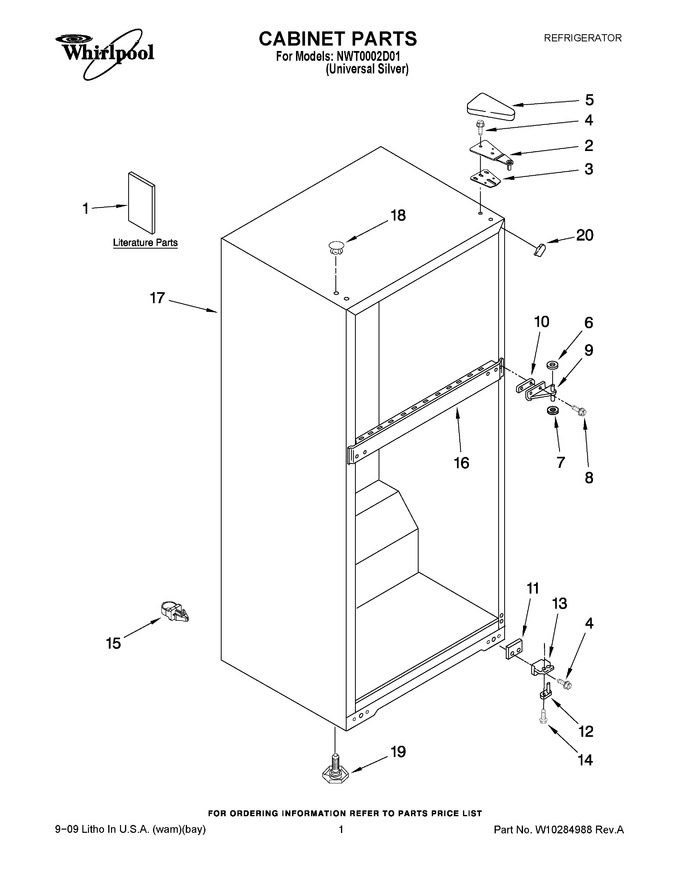

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10201293 | Use & Care Guide |
|
- | |||||
| 1 | 677969 | Do-it-yourself Manual, Ref./fzr. |
|
$ 30.30 | |||||
| 2 | 2211109 | Hinge, Top |
|
- | |||||
| 3 | W11169703 | Shim-hinge-top (Replaces: 2221885) |
|
$ 15.79 | |||||
| 4 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 5 | 2326062 | Cover, Hinge |
|
- | |||||
| 6 | WP487576 | Washer (Replaces: 487576) |
|
Immediately | $ 9.88 | ||||
| 7 | WP487802 | Washer (Replaces: 487802) |
|
Immediately | $ 7.91 | ||||
| 8 | 3400112 | Screw |
|
$ 73.45 | |||||
| 9 | 2211114 | Hinge, Center |
|
- | |||||
| 10 | 2166043 | Shim, Hinge Center |
|
$ 69.76 | |||||
| 11 | 2211299 | Shim, Hinge Bottom |
|
Immediately | $ 12.84 | ||||
| 12 | 2211158 | Hinge-pin, Bottom |
|
Immediately | $ 35.26 | ||||
| 13 | 2211159 | Hinge-butt, Bottom |
|
- | |||||
| 14 | WP3428970 | Screw (Replaces: 3428970) |
|
$ 11.53 | |||||
| 15 | 2219077 | Clip, Harness |
|
$ 64.24 | |||||
| 16 | N/P | Rail, Center (not Serviced) |
|
- | |||||
| 17 | N/P | Cabinet (not Serviced) |
|
- | |||||
| 18 | 2326060 | Hole Plug (4) |
|
$ 56.81 | |||||
| 19 | W11117769 | Leg, Leveler (Replaces: 937220) |
|
Immediately | $ 19.37 | ||||
| 20 | 2326063 | Filler, Corner |
|
- |
