View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

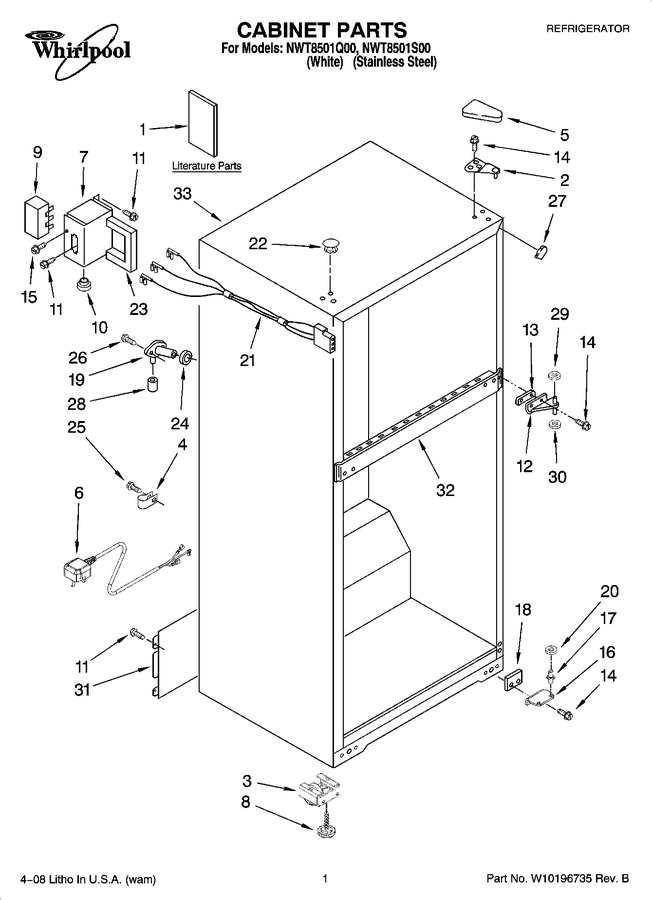

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10164837 | Use & Care Guide |
|
- | |||||
| 1 | 677969 | Do-it-yourself Manual, Ref./fzr. |
|
$ 30.30 | |||||
| 2 | WP2261963 | Hinge Butt, Top (Replaces: 2261963) |
|
Immediately | $ 99.45 | ||||
| 3 | WPW10142530 | Roller, Front (Replaces: W10142530) |
|
Immediately | $ 118.10 | ||||
| 4 | 489348 | Clamp, Tube |
|
- | |||||
| 5 | WP2213360 | Cover-hinge (white) (Replaces: 2213360) |
|
$ 20.19 | |||||
| 5 | WP2213363 | Cover, Hinge (black) (Replaces: 2213363) |
|
Immediately | $ 19.12 | ||||
| 6 | 2264738 | Cord, Service (Replaces: 2197909) |
|
- | |||||
| 7 | 2188194 | Enclosure, Term. |
|
- | |||||
| 8 | WPW10133299 | Leveler (Replaces: W10142551) |
|
$ 12.35 | |||||
| 9 | 1129346 | Terminal Block |
|
- | |||||
| 10 | 1129449 | Bushing |
|
- | |||||
| 11 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 12 | 2266681B | Hinge, Center (black) |
|
- | |||||
| 12 | 2266681W | Hinge, Center (white) |
|
- | |||||
| 13 | 2166043 | Shim, Hinge Center (white) |
|
$ 69.76 | |||||
| 13 | 2215385 | Shim, Hinge Center (black) |
|
$ 91.34 | |||||
| 14 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 15 | WP489399 | Screw (Replaces: 489399) |
|
$ 7.30 | |||||
| 16 | WP2325482 | Hinge Butt, Btm (Replaces: 2325482) |
|
Immediately | $ 80.00 | ||||
| 17 | WP2325483 | Hinge-pin, Btm (Replaces: 2325483) |
|
Immediately | $ 7.55 | ||||
| 18 | WP2201567 | Shim, Bottom Hinge (Replaces: 2201567) |
|
Immediately | $ 8.16 | ||||
| 19 | WP2196157 | Fitting,water Tube (Replaces: 2174760) |
|
Immediately | $ 12.59 | ||||
| 20 | WP487576 | Washer (Replaces: 487576) |
|
Immediately | $ 9.88 | ||||
| 21 | 2209657 | Wire Assembly (Replaces: 2174913) |
|
- | |||||
| 22 | WP2183998 | Hole Plug (6) (black) (Replaces: 2183998) |
|
$ 19.01 | |||||
| 22 | WP2151652 | Hole Plug (6) (white) (Replaces: 2201012) |
|
$ 22.87 | |||||
| 23 | 2167227 | Gasket |
|
- | |||||
| 24 | WP1106508 | Seal Gasket (Replaces: 1106508) |
|
Immediately | $ 10.43 | ||||
| 25 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 26 | WP488729 | Screw (Replaces: 2262176) |
|
Immediately | $ 8.28 | ||||
| 27 | W10859322 | Corner Filler (white) (Replaces: 2166003) |
|
$ 8.09 | |||||
| 27 | W11500943 | Corner Filler (black) (Replaces: 2215384) |
|
$ 7.98 | |||||
| 28 | WP487996 | Cap Bushing (Replaces: 487996) |
|
$ 8.67 | |||||
| 29 | WP489467 | Washer (Replaces: 489341) |
|
Immediately | $ 11.42 | ||||
| 30 | WP487802 | Washer (7/64 Nylon) (Replaces: 487802) |
|
Immediately | $ 7.91 | ||||
| 31 | 2213762 | Cover-unit |
|
- |
