SELECT A DIAGRAM

01 - Cabinet Parts

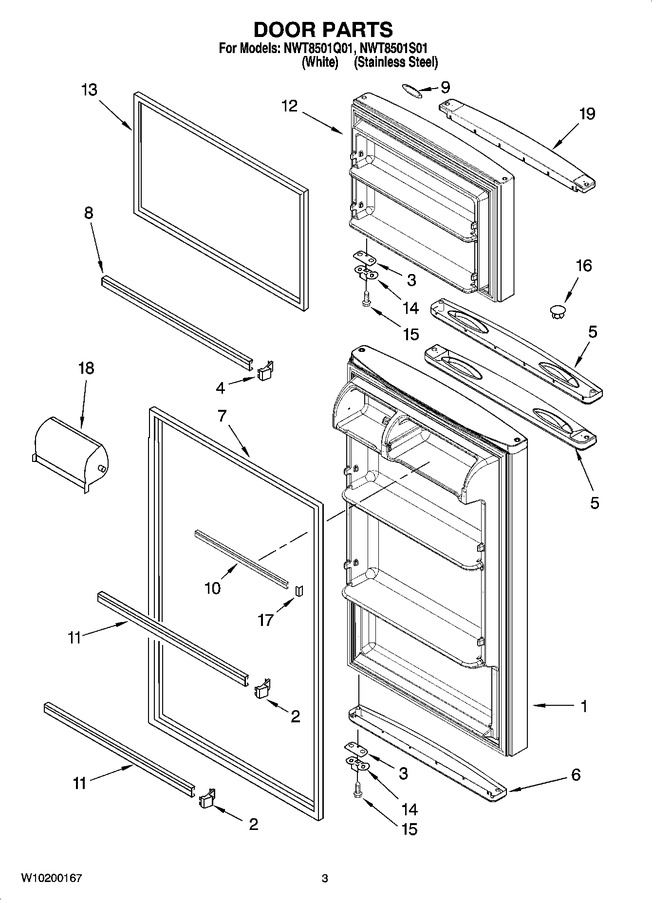

02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2316159W		Refrigerator Door (includes Items 5, 6 & 7) (white)				$ 479.27
1	2265677S		Refrigerator Door (includes Items 5, 6 & 7) (stainless Steel)		Appelez-nous	-
2	WP2195916K		Plug, Trim   (Replaces: 2195916)			Immediately	$ 11.86
3	WP2258681W		Shim, Door Stop   (Replaces: 2258681W)			Immediately	$ 6.80
4	WP2156003		Plug-trim   (Replaces: 2156003)			Immediately	$ 11.93
5	2265645W		Handle-rc & Fc (white)				$ 197.98
5	2222045		Handle-rc & Fc (black)				$ 41.70
6	2265647W		Endcap, Bottom-rc (white)				$ 63.82
6	2222048		Endcap, Bottom-rc (black)		Appelez-nous	-
7	WP2319264T		Door Gasket, Rc (beige)   (Replaces: W10190032)			Immediately	$ 193.96
7	WP2319264B		Door Gasket, Rc (black)   (Replaces: 2264723)				$ 291.47
8	2265736		Trim, Door (2)		Appelez-nous	-
9	WP2213265		Nameplate   (Replaces: 2262218)			Immediately	$ 83.86
10	2325403		Trim, Door Shelf		Appelez-nous	-
11	2325402		Trim, Door		Appelez-nous	-
12	2316367W		Freezer Door (includes Items 5, 13 & 19) (white)				$ 513.68
12	2265678S		Freezer Door (includes Items 5, 13 & 19) (stainless Steel)		Appelez-nous	-
13	WP2319263B		Door Gasket, Fc (black)   (Replaces: 2264722)				$ 241.45
13	WP2319263T		Door Gasket, Fc (beige)   (Replaces: W10190031)			Immediately	$ 194.27
14	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
15	W10276642		Screw   (Replaces: 8533904)				$ 5.77
16	WP2212651		Hole Plug (black)   (Replaces: 2212651)				$ 21.79
16	WP2212648		Hole Plug (white)   (Replaces: 2212648)			Immediately	$ 7.37
17	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 7.23
18	2325401		Compartment Door		Appelez-nous	-
19	2252863		Endcap, Top (fc) (black)			Immediately	$ 139.98
19	2265644W		Endcap, Top (fc) (white)				$ 148.05

    View Diagram in Separate Window       Print Part List
