View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet, Literature
02 - Liner
03 - Door
04 - Top Box

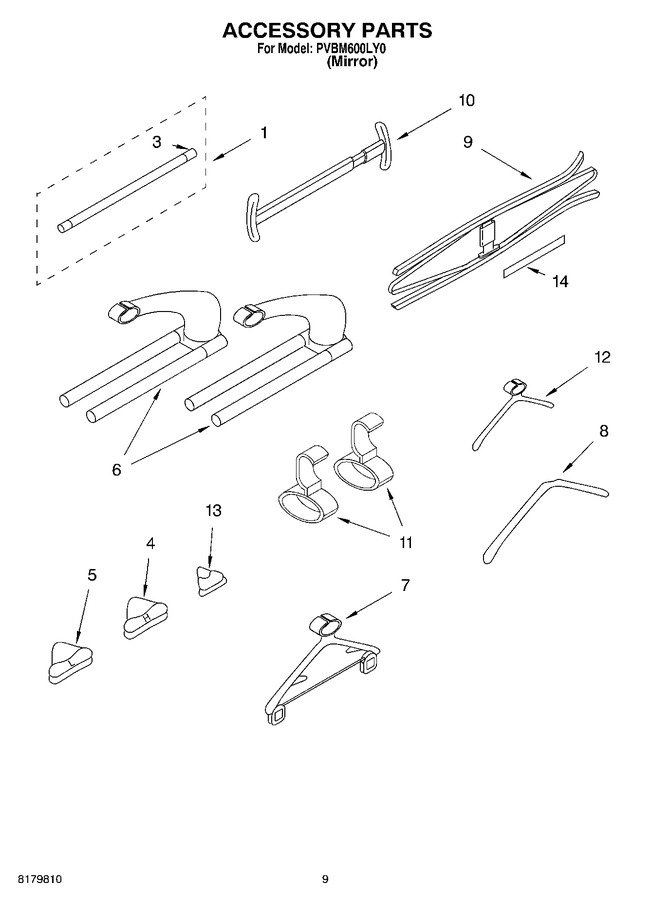

05 - Accessory
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8527316 | Utility Bar Assembly |
|
- | |||||
| 3 | 8526340 | End Cap |
|
- | |||||
| 4 | 8526360 | Clip, Heavy |
|
- | |||||
| 5 | 8526371 | Clip, Light |
|
- | |||||
| 6 | 8526378 | Pant Hanger |
|
- | |||||
| 7 | 8526641 | Garment Hanger |
|
- | |||||
| 8 | 8526358 | Extender, Hanger |
|
- | |||||
| 9 | 8526398 | Stretcher, Sleeve |
|
- | |||||
| 10 | 8526301 | Body Shaper |
|
- | |||||
| 11 | 8526326 | Closet Adapter |
|
- | |||||
| 12 | 8526322 | Childrens Hanger |
|
- | |||||
| 13 | 8526379 | Placket Clip Assembly |
|
- | |||||
| 14 | 8527308 | Storage Drawer |
|
- | |||||
| 14 | 4396215 | Weight-pak |
|
- | |||||
| 14 | 8171634 | Presiva-crisp |
|
- | |||||
| 14 | 8171635 | Presiva-soft |
|
- | |||||
| 14 | 8526627 | Strap, Sleeve Stretcher |
|
- | |||||
| 14 | 4396280 | Versa-pak |
|
- | |||||
| 14 | 8171480 | Performa-pak |
|
- | |||||
| 14 | 4396281 | Combo-pak |
|
- |
