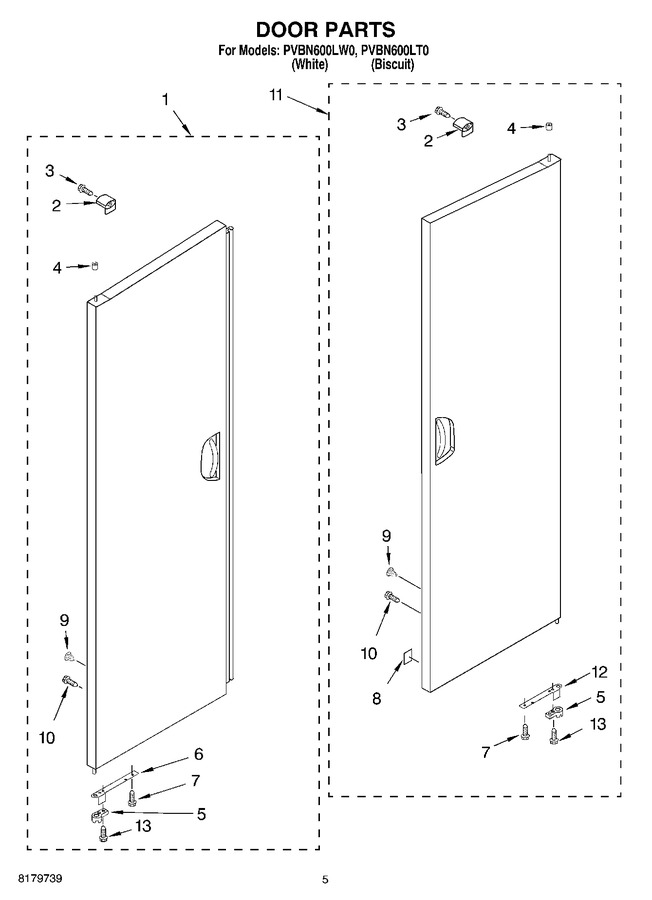

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8527115		Left Door Assembly (white)		Appelez-nous	-
1	8527188		Left Door Assembly (biscuit)		Appelez-nous	-
2	8526347		Garment Hook		Appelez-nous	-
3	3400876		Screw, 8-18 X 3/4		Appelez-nous	-
4	8527330		Bumper, Top Pin		Appelez-nous	-
5	8527167		Door Cam		Appelez-nous	-
6	8527161		Hinge, Bottom Left		Appelez-nous	-
7	WP308685		Screw, 10-16 X 1/2   (Replaces: 3367670)			Immediately	$ 7.87
8	8527339		Strike Plate		Appelez-nous	-
9	8527259		Plug, Door Liner		Appelez-nous	-
10	3196166		Screw, 8-18 X 1/2				$ 7.36
11	8527106		Right Door Assembly (white)		Appelez-nous	-
11	8527183		Right Door Assembly (biscuit)		Appelez-nous	-
12	8527160		Hinge, Bottom Right		Appelez-nous	-
13	WP8281206		Screw 8-18 X 1/2   (Replaces: 8281206)				$ 8.37
