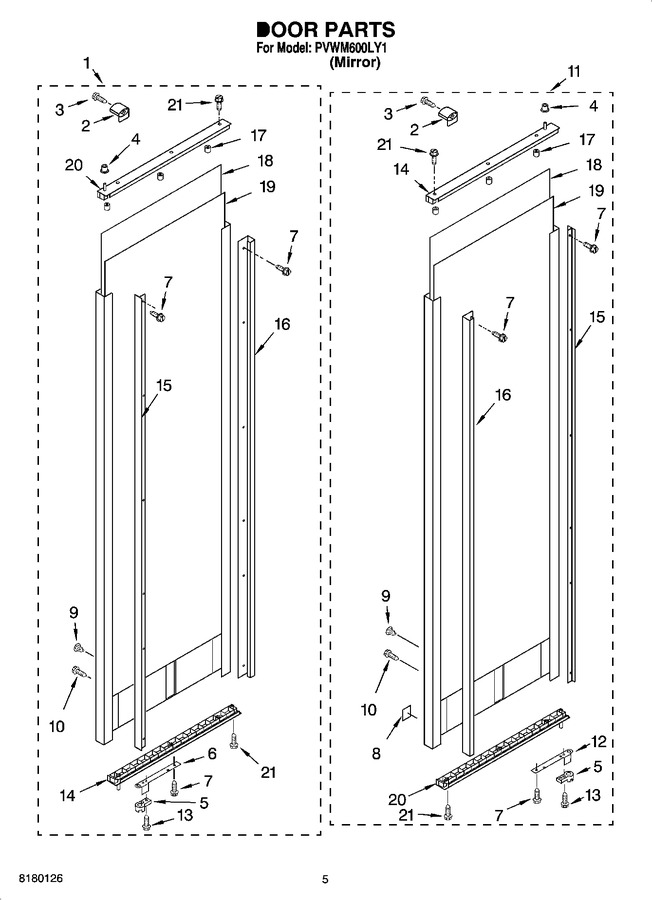

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8527124		Left Door (complete)		Appelez-nous	-
2	8526347		Garment Hook		Appelez-nous	-
3	3400876		Screw, 8-18 X 3/4		Appelez-nous	-
4	8527193		Bumper, Top Pin		Appelez-nous	-
5	8527167		Door Cam		Appelez-nous	-
6	8527161		Hinge, Lower Left		Appelez-nous	-
7	WP8281206		Screw 8-18 X 1/2   (Replaces: 8281206)				$ 8.37
8	8527339		Strike Plate		Appelez-nous	-
9	8527259		Plug, Door Liner		Appelez-nous	-
10	3196166		Screw, 8-18 X 3/8				$ 7.36
11	8527123		Right Door (complete)		Appelez-nous	-
12	8527160		Hinge, Lower Right		Appelez-nous	-
13	3400952		Rivet		Appelez-nous	-
14	8527133		Endcap (ru/ll)		Appelez-nous	-
15	8527136		Trim, Door Hinge		Appelez-nous	-
16	8527135		Handle, Door		Appelez-nous	-
17	8527331		Spacer, Nylon		Appelez-nous	-
18	8527181		Spacer, Door Panel		Appelez-nous	-
20	8527132		Endcap (rl/lu)		Appelez-nous	-
21	3196180		Screw		Appelez-nous	-
