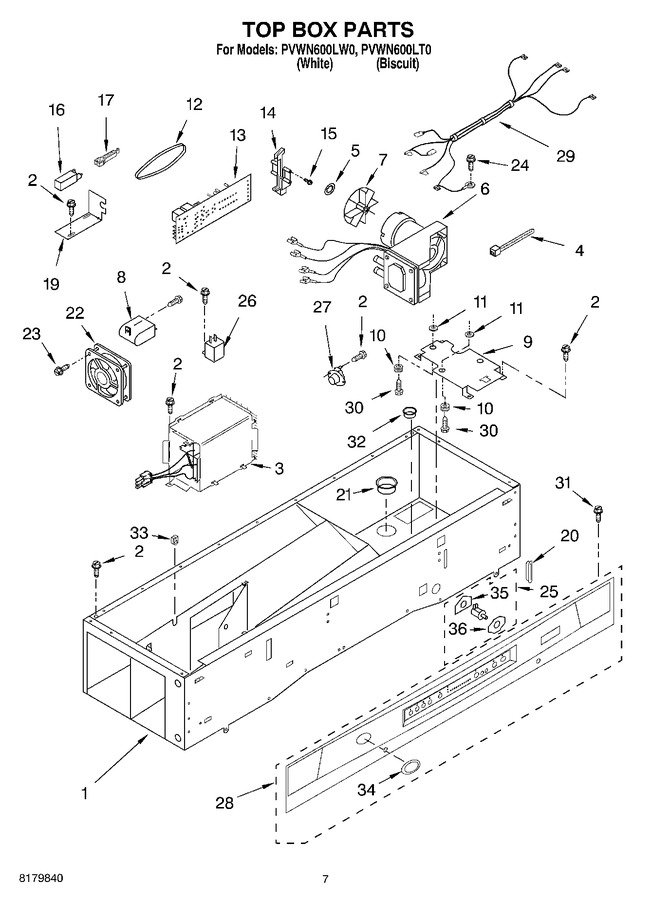

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
3	8526359		Heater Assembly		Appelez-nous	-
4	8526408		Wire Tie		Appelez-nous	-
5	8526654		Clip, Fan Blade		Appelez-nous	-
6	8526328		Compressor (includes Foam Baffle)		Appelez-nous	-
7	8526434		Fan Blade (includes No. 5)		Appelez-nous	-
8	WP2201147		Capacitor   (Replaces: 8526316)				$ 135.42
9	8526327		Compressor Mount		Appelez-nous	-
10	8283536		Isolator		Appelez-nous	-
11	8526417		Washer				$ 14.64
12	8526554		Band, Edpm		Appelez-nous	-
13	8526329		Control Board		Appelez-nous	-
14	8526330		Clip, Control Board (2)		Appelez-nous	-
15	8526582		Screw		Appelez-nous	-
16	8526418		Wax Motor		Appelez-nous	-
17	8526420		Link, Wax Motor		Appelez-nous	-
19	8526419		Mount, Wax Motor		Appelez-nous	-
20	8526351		Grommet		Appelez-nous	-
21	8526350		Grommet (2 Inches)		Appelez-nous	-
22	8526342		Fan Motor		Appelez-nous	-
23	8526384		Screw		Appelez-nous	-
24	8526396		Ground Screw		Appelez-nous	-
25	8527196		Interlock Switch		Appelez-nous	-
26	8526302		Buzzer		Appelez-nous	-
27	8526406		Thermistor		Appelez-nous	-
28	8527249		Control Panel (white)		Appelez-nous	-
28	8527250		Control Panel (biscuit)		Appelez-nous	-
29	8318160		Wire Harness		Appelez-nous	-
30	8526386		Screw		Appelez-nous	-
31	WP489464		Screw   (Replaces: 3400824)			Immediately	$ 8.38
32	8526412		Tubing, Grommet		Appelez-nous	-
33	8526353		Grommet, Wire		Appelez-nous	-
34	8529540		Badge, Assembly		Appelez-nous	-
35	8527346		Gasket, Switch		Appelez-nous	-
36	8527347		Wiper, Switch		Appelez-nous	-
