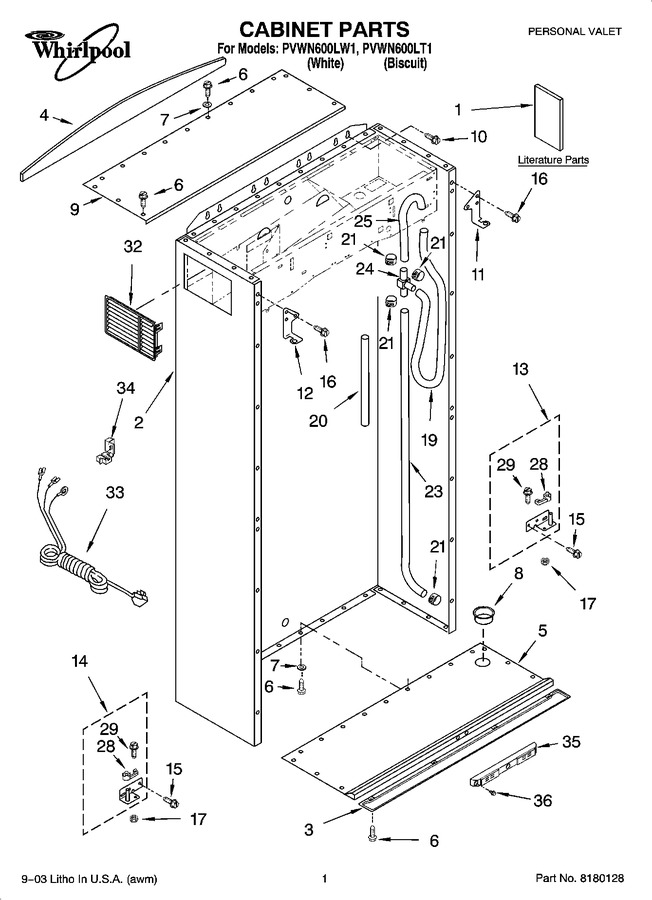

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8527389		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT8527278		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT8527404		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT8527280		Literature Parts (use & Care Video)		Appelez-nous	-
2	N/A		Cabinet (not Serviced)		Appelez-nous	-
3	8527174		Drip Tray		Appelez-nous	-
4	8526672		Cover, Bracket		Appelez-nous	-
5	8527204		Cabinet, Bottom		Appelez-nous	-
6	8526391		Screw		Appelez-nous	-
7	8526294		Washer		Appelez-nous	-
8	8526352		Grommet, Power Cord		Appelez-nous	-
9	8527251		Top, Cabinet (white)		Appelez-nous	-
9	8527253		Top, Cabinet (biscuit)		Appelez-nous	-
10	8526293		Bolt, 1/4 X 2		Appelez-nous	-
10	WP487939		Nut, 1/4 - 20   (Replaces: 487939)				$ 8.62
11	8527127		Hinge, Top Right		Appelez-nous	-
12	8527128		Hinge, Top Left		Appelez-nous	-
13	8527129		Hinge Assembly, Bottom Right		Appelez-nous	-
14	8527130		Hinge Assembly, Bottom Left		Appelez-nous	-
15	WP3400861		Screw   (Replaces: 3400856)				$ 8.78
16	WP489464		Screw, 8-18 X 1/2   (Replaces: 3400824)			Immediately	$ 8.38
17	8527275		Nut, Nylon		Appelez-nous	-
19	8527386		Hose, Compressor To Tee Fitting		Appelez-nous	-
20	8527357		Hose, Compressor Inlet		Appelez-nous	-
21	WP596669		Clamp, Hose   (Replaces: 8055019)			Immediately	$ 8.82
23	8527387		Hose, Tee To Circulation Nozzle		Appelez-nous	-
24	8526405		Tee Fitting		Appelez-nous	-
25	8527388		Hose, Tee Fitting To Airdock		Appelez-nous	-
28	8527145		Cam, Hinge		Appelez-nous	-
29	8281268		Screw, 8-32 X 3/4		Appelez-nous	-
32	8527264		Grille (biscuit)		Appelez-nous	-
32	8527263		Grille (white)		Appelez-nous	-
33	8526421		Power Cord		Appelez-nous	-
34	8526401		Strain Relief		Appelez-nous	-
35	8527202		Magnet Assembly		Appelez-nous	-
36	8527268		Pad, Cabinet Leveling		Appelez-nous	-
36	WP8281206		Screw 8-18 X 1/2   (Replaces: 8281206)				$ 8.37
36	N/A		Following Parts Not Illustrated		Appelez-nous	-
36	8527300		Bracket, Wall Mount		Appelez-nous	-
