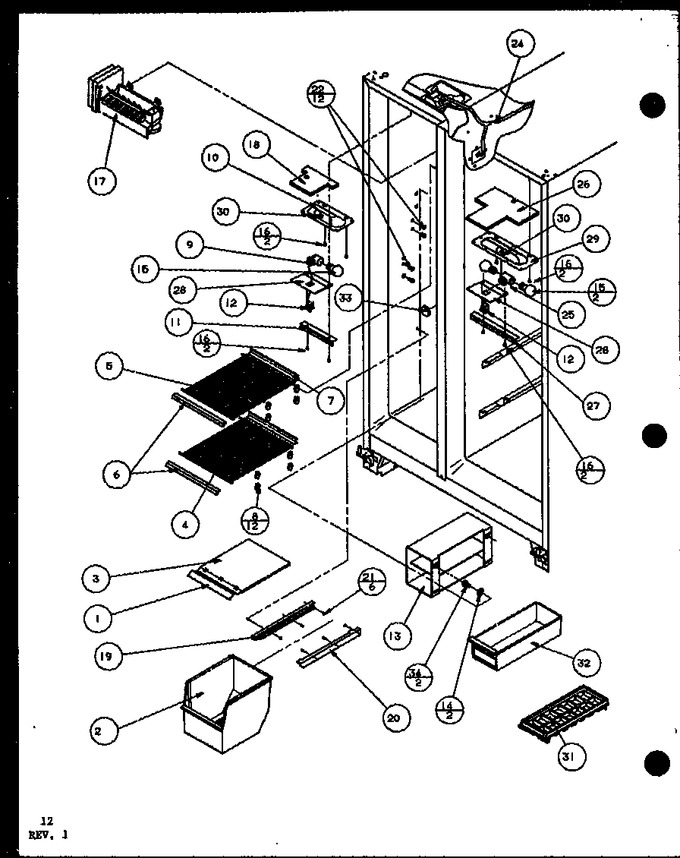

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7616616		Trim Frz Shelf		Appelez-nous	-
2	D7781401		Basket Freezer Clear		Appelez-nous	-
3	D7781504		Freezer Shelf		Appelez-nous	-
4	D7788304		Shelf Fz Wire		Appelez-nous	-
5	D7788306		Shelf, Frz.		Appelez-nous	-
6	C8913510		Trim, Front Frz Shelf		Appelez-nous	-
7	C8913605		Trim, Rear Frz. Shelf		Appelez-nous	-
8	C8973801		Support, Frz Shelf				$ 8.35
9	C8973401		Socket-light		Appelez-nous	-
10	D7760101		Housing, Fz Light		Appelez-nous	-
11	D7288104		Shield, Light		Appelez-nous	-
12	W11384469		Switch   (Replaces: C3680304)			Immediately	$ 39.09
13	D7620106		Rack, Ice Service		Appelez-nous	-
14	M0270508		Washer		Appelez-nous	-
15	40A15		Bulb, Light (40 Watt)   (Replaces: A0282803)			Immediately	$ 1.98
16	67006425		Screw   (Replaces: M0230917)			Immediately	$ 7.30
17	Y00000000		See Note Add-on Ice Maker Assembly -- (available Through Sales)		Appelez-nous	-
18	C8976301		Barrier		Appelez-nous	-
19	D7849901		Driver		Appelez-nous	-
20	D7849902		Glide, Freezer Rh		Appelez-nous	-
21	M0213529		Screw		Appelez-nous	-
22	C8973701		Plug, Frz Shelf Support		Appelez-nous	-
24	D7771301		Harness, Outer Liner		Appelez-nous	-
25	D7808602		Socket, Dual Lamp		Appelez-nous	-
26	C8778301		Insulation		Appelez-nous	-
27	D7288105		Shield, Light		Appelez-nous	-
28	D7297602		Cover, Light Sw		Appelez-nous	-
29	D7716401		Housing-ref Light		Appelez-nous	-
30	B5733302		Clip, Ground		Appelez-nous	-
31	WP841180A		Tray, Ice   (Replaces: D7725401)			Immediately	$ 47.84
32	D7620009		Ice Bin		Appelez-nous	-
33	A3069103		Plug		Appelez-nous	-
34	M0219559		Screw		Appelez-nous	-
