Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 D7757929 Door Ref G Q Appelez-nous -
1 D7757928 Door Ref W. Appelez-nous -
1 D7757930 Door Ref L Appelez-nous -
2 D7828201 Inner Door Panel, Ref Appelez-nous -
3 D7783301 Bucket, Ref Door Appelez-nous -
4 67003697 Shelf, Ref Door   (Replaces: D7783401) Special Order $ 82.08

5 B0566723 Insulation Appelez-nous -
6 C8987104 Seal, Door Dike Appelez-nous -
7 B0523562 Insul. By The Ft. Appelez-nous -
8 D7825202 Gasket Ref Door Appelez-nous -
9 M0219717 Screw Appelez-nous -
10 D7781201 Module, Dairy Appelez-nous -
11 D7781301 Door Dairy Appelez-nous -
12 D7806401 Container Sec. Ser. Appelez-nous -
13 D7814602 Snugger Appelez-nous -
14 D3799802 Butter Tray Appelez-nous -
15 D7695603 Egg Bucket A-v Appelez-nous -
16 D7805902 Cover, Egg Bucket Appelez-nous -
17 C8823627 Black Glass Panel Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

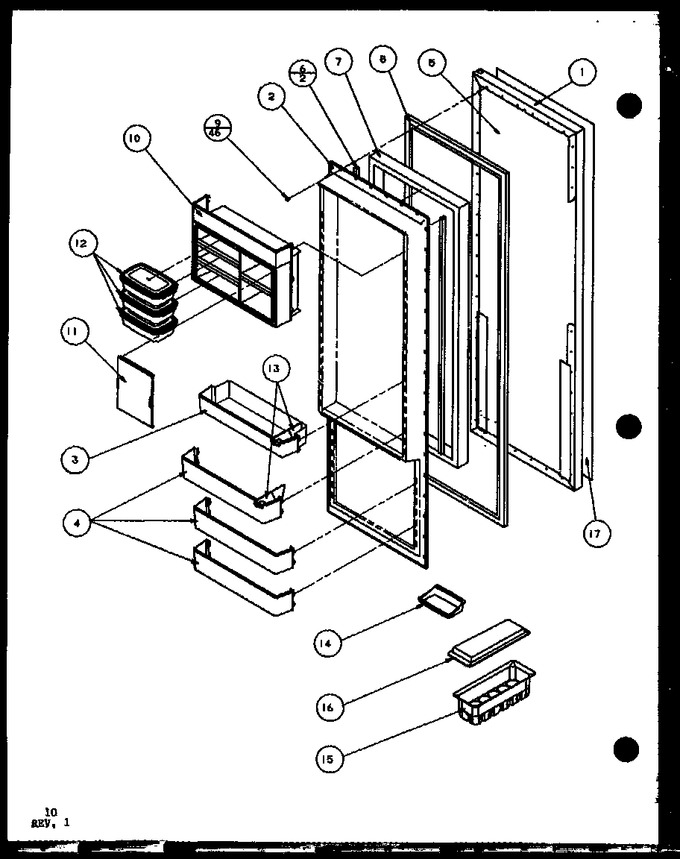

Diagram for SWPD25H (BOM: P7836022W)
