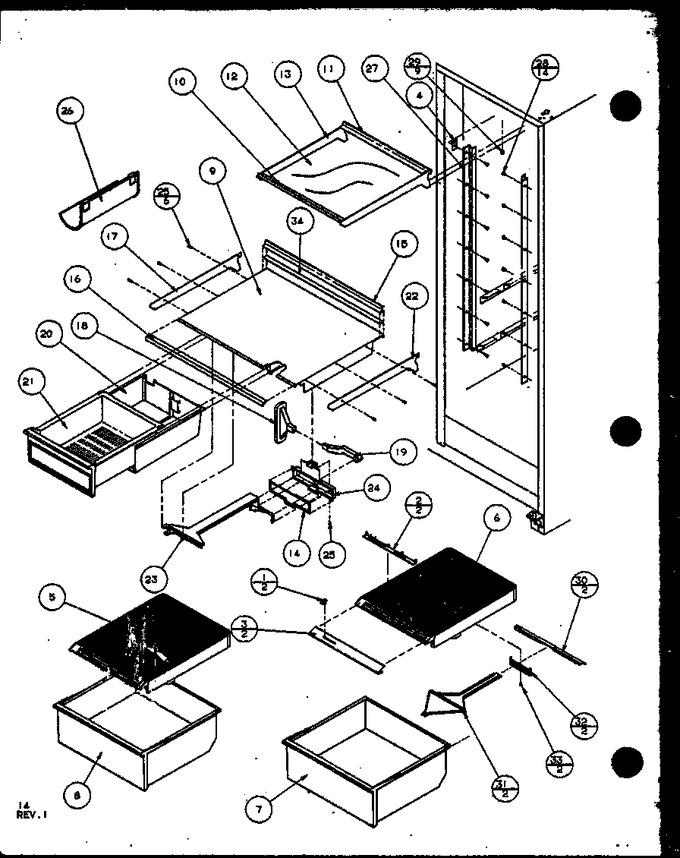

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C8908301 | Knob Humidity A-k |
|
- | |||||
| 2 | D7587705 | Slide Humidity |
|
- | |||||
| 3 | D7616691 | Trim Crisper Top Fz |
|
- | |||||
| 4 | C8992301 | Bracket |
|
- | |||||
| 5 | D7796401 | Crisper Top |
|
- | |||||
| 6 | D7796402 | Crisper Top |
|
- | |||||
| 7 | D7797814 | Pan Fruit |
|
- | |||||
| 8 | D7797815 | Pan Crisp |
|
- | |||||
| 9 | D7698210 | Top, M.k |
|
- | |||||
| 10 | 10049908 | Trim, Shelf |
|
- | |||||
| 11 | C8913603 | Trim, Shelf Rear |
|
- | |||||
| 12 | 10370001 | Glass Shelf |
|
- | |||||
| 13 | D7871005 | Frame Cont. Shelf |
|
- | |||||
| 14 | A3030305 | Gasket-per Ft |
|
- | |||||
| 15 | C8831810 | Trim, Rear Shelf |
|
- | |||||
| 16 | 10049910 | Trim, Shelf |
|
- | |||||
| 17 | D7862934 | Side Rail |
|
- | |||||
| 18 | D7873601 | Grommet, Mk |
|
- | |||||
| 19 | D7788101 | Duct, M.k. Air |
|
- | |||||
| 20 | D7698111 | Sleeve M.k. |
|
- | |||||
| 21 | D7698324 | Pan-meat |
|
- | |||||
| 22 | D7862949 | Side Rail |
|
- | |||||
| 23 | D7697903 | M.k. Control Slide |
|
- | |||||
| 24 | D7698003 | Housing M.k. Slide |
|
- | |||||
| 25 | M0230028 | Screw, No.8-32 X 5/16 Pph (blk) |
|
- | |||||
| 26 | D7547611 | Rack-bottle |
|
- | |||||
| 27 | D7789807 | Ladder Cantilever |
|
- | |||||
| 28 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 29 | M0580007 | Grommet, Screw |
|
- | |||||
| 30 | D7764103 | Damper, Humidity Center |
|
- | |||||
| 31 | D7782203 | Slide Crisper Cont. |
|
- | |||||
| 32 | D7807601 | Support |
|
- | |||||
| 33 | M0230017 | Screw,tc |
|
- | |||||
| 34 | R0195044 | Tape, Adhesive 9 Ft Roll |
|
- | |||||
| NI | 10322103 | Up-crisper Frm Assy |
|
- | |||||
| NI | 10279127 | Glass Shelf Assembly |
|
- | |||||
| NI | 10322104 | Crisper Top Assembly, Lower |
|
- |
