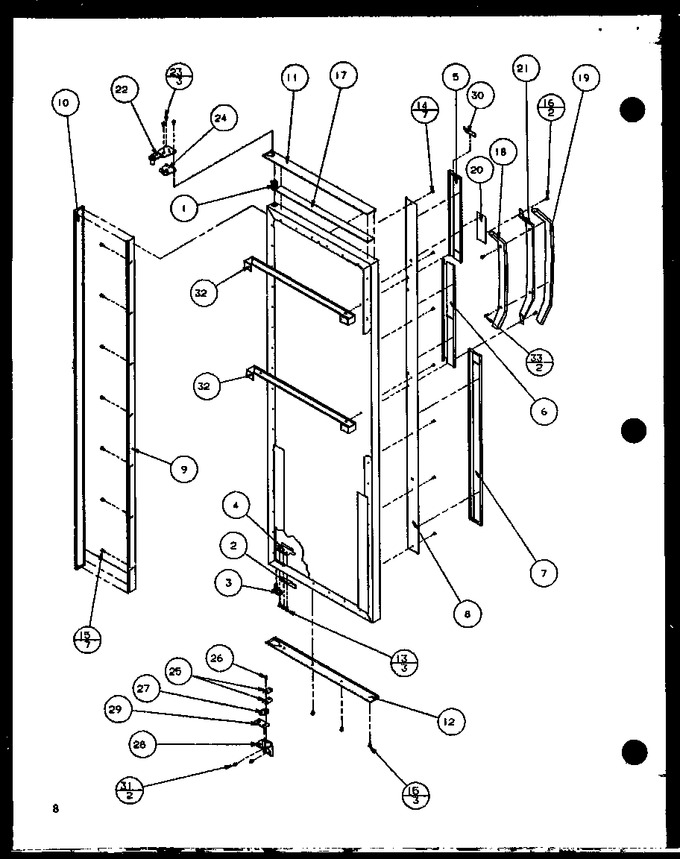

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8965901		Bushing, Top		Appelez-nous	-
2	C8972401		Stop, Door (blk)		Appelez-nous	-
3	R0181181		Kit,dr Closure   (Replaces: D7751402)			Immediately	$ 7.55
4	D7790801		Nut, Door Stop		Appelez-nous	-
5	D7852007		Trim Upper Ref Door K		Appelez-nous	-
6	D7853802		Trim Center Refr K		Appelez-nous	-
7	D7792802		Lower Trim Ref Door K		Appelez-nous	-
8	D7793202		Ref. Trim, Retainer		Appelez-nous	-
10	C8974102		Trim, Door		Appelez-nous	-
13	M0219717		Screw		Appelez-nous	-
14	M0213815		Screw		Appelez-nous	-
15	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 8.43
16	WP3400094		Screw   (Replaces: M0253942)				$ 9.26
18	D7792002		Handle Assy, Black		Appelez-nous	-
19	D7792102		Handle Assy, Black		Appelez-nous	-
20	C8984303		Thinplate, Door		Appelez-nous	-
21	D7826601		Handle		Appelez-nous	-
22	D7757803		Top Hinge Assy		Appelez-nous	-
23	R9800670		Kit, Screw   (Replaces: M0257244)				$ 10.58
24	B8389001		Shim, Top Hinge		Appelez-nous	-
25	B8387701		Shim, Door Closure		Appelez-nous	-
25	B8387702		Shim, Door Closure		Appelez-nous	-
26	WPW10068250		Screw   (Replaces: M0202530)				$ 4.27
27	R0181181		Kit,dr Closure   (Replaces: D7748301)			Immediately	$ 7.55
28	D7757704		Hinge Assy Bottom		Appelez-nous	-
29	B8386703		Kit,btm Hinge Shim		Appelez-nous	-
29	B8386701		Kit,btm Hinge Shim		Appelez-nous	-
29	B8386702		Kit,btm Hinge Shim		Appelez-nous	-
30	C8972304		Shim		Appelez-nous	-
31	M0246258		Screw		Appelez-nous	-
32	D7837402		Support, Handle		Appelez-nous	-
33	M0215115		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
