Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10547502W Assy Ref Dr Sxs Appelez-nous -
1 10547502L Assy Ref Dr Appelez-nous -
1 10547502E Assy Ref Dr Cfc11 Appelez-nous -
2 10525101 Shelf, Dairy Appelez-nous -
3 10527310 Door, Dairy Appelez-nous -
4 10521601 Liner, Ref. Door Appelez-nous -
5 10520404 Shelf, Chiller Appelez-nous -
6 10521804 Shelf, Refrig. Door Appelez-nous -
7 10185001 Container Appelez-nous -
8 10202001 Clip, Retainer Appelez-nous -
9 10359701 Gasket, Door (w Ref) Appelez-nous -
9 10359703 Gasket, Door (e Ref) Appelez-nous -
10 M0219730 Screw Special Order $ 7.65

11 10310901 Tray, Butter Appelez-nous -
12 10423120 Bin, Egg Appelez-nous -
13 10436404 Lid, Utility Special Order $ 60.85

14 B0523563 Insulation Ft. K Appelez-nous -
15 10524102 Shelf, Sec Serve Appelez-nous -
16 10169004 Snugger, Shelf Appelez-nous -
17 10520204 Ref Dr Bucket Appelez-nous -
18 10436504 Tray, Egg Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

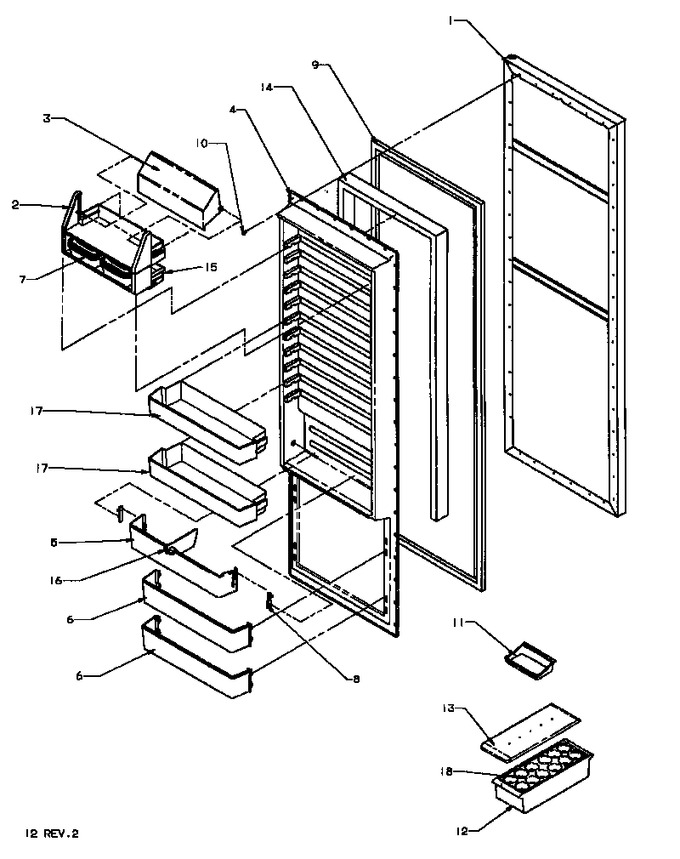

Diagram for SX22NE (BOM: P1162703W E)
