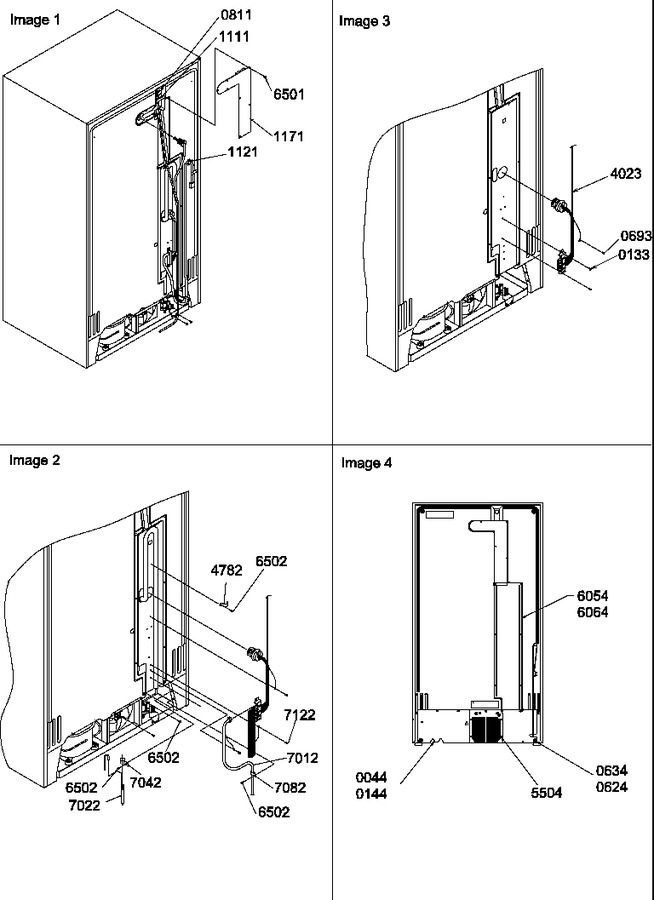

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
44	12041608		Assy, Mc Back		Appelez-nous	-
133	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
144	M0219704		Screw		Appelez-nous	-
624	WP489474		Screw   (Replaces: M0220634)			Immediately	$ 8.55
634	C8960601		Foot, Outer Case		Appelez-nous	-
693	WP489399		Screw, Ca   (Replaces: M0239216)				$ 7.30
811	M0310319		Plug Button		Appelez-nous	-
1111	A3189336		Gasket, Foam		Appelez-nous	-
1121	WPM0104106		Clip   (Replaces: M0104106)				$ 8.17
1171	10178505		Cover - Wire		Appelez-nous	-
4023	12026101		Harness-cabinet		Appelez-nous	-
4782	B5794201		Clamp		Appelez-nous	-
5504	M0227217		Screw, Sm		Appelez-nous	-
6054	10178405		Cover, O.c.back		Appelez-nous	-
6064	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
6501	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
6502	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
7012	10916505		Cord-power		Appelez-nous	-
7022	WPB2150504		Drier   (Replaces: B2150504)				$ 136.98
7042	10547002		Clip, Drier		Appelez-nous	-
7082	M0103904		Clamp, Speed		Appelez-nous	-
7122	WP489399		Screw, Ca   (Replaces: M0239216)				$ 7.30
