SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts & Toe Grille


03 - Deli, Shelves, Crisper Assy, Accessories


04 - Drain Systems, Rollers, Evaporator


05 - Freezer Door


06 - Freezer Shelves And Lights


07 - Ice Maker Parts & Add On Ice Maker Kit


08 - Ice Maker/control Assy


09 - Lights, Hinges, Shelving


10 - Machine Compartment & Muffler Assy


11 - Refrigerator Door & Door Trim And Handle

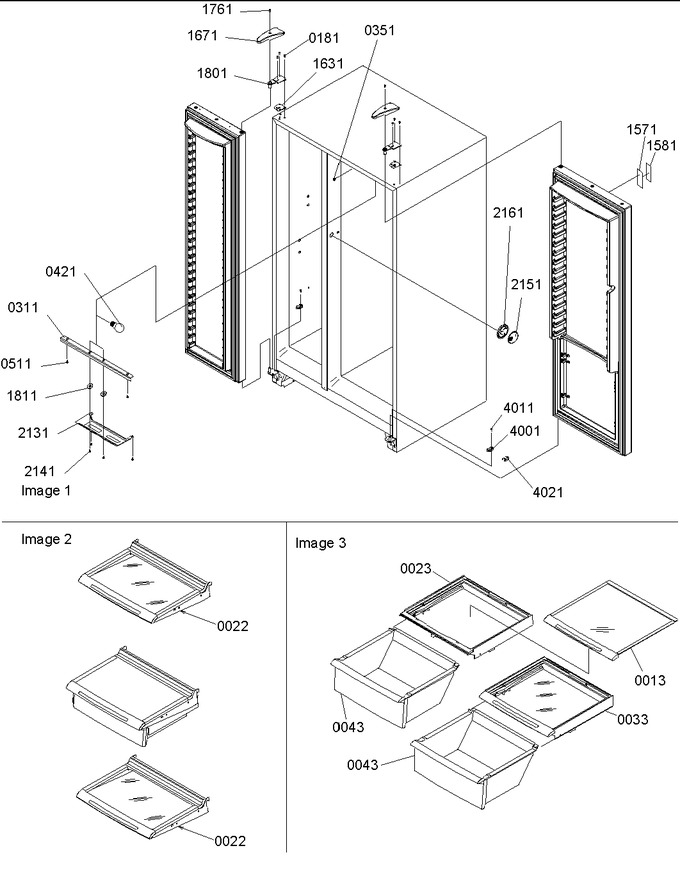

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
13	10783109		Shelf-top Crisper		Appelez-nous	-
22	10809609		Shelf, Stationary		Appelez-nous	-
23	10882815Q		Assy, Crisper Frame		Appelez-nous	-
33	10882816Q		Assy, Crisp Frame		Appelez-nous	-
43	10783201		Pan,crisper		Appelez-nous	-
181	R9800670		Screw, Tf   (Replaces: M0238731)				$ 10.58
311	10014716		Shield, Light		Appelez-nous	-
351	M0580007		Grommet, Screw		Appelez-nous	-
421	40A15		Bulb, Light (40 Watt)   (Replaces: A0282803)			Immediately	$ 1.98
511	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
1571	10992002		Base, Nameplate		Appelez-nous	-
1581	10992102		Insert- L Nameplate		Appelez-nous	-
1631	12428101		Shim, Top Hinge		Appelez-nous	-
1671	10849407		Cover-l Hinge		Appelez-nous	-
1761	WP8281196		Screw-mach   (Replaces: M0202327)			Immediately	$ 7.55
1801	12426201		Hinge, Top (e-ct)		Appelez-nous	-
1811	M0270508		Washer		Appelez-nous	-
2131	10493302		Cover, Frz Light		Appelez-nous	-
2141	M0238846		Screw-sm		Appelez-nous	-
2151	10164813		Grille, Control		Appelez-nous	-
2161	10164702		Control-air		Appelez-nous	-
4001	R0181181		Closure, Door (blk)   (Replaces: 12431302)			Immediately	$ 7.55
4011	W11227370		Screw, Tc   (Replaces: M0220431)			Immediately	$ 14.91
4021	WP67005716		Shim, Dr Closure (blk)   (Replaces: 10361806)				$ 7.83
NI	M0310343		Plug, Button (wht)				$ 11.20

    View Diagram in Separate Window       Print Part List
