SELECT A DIAGRAM
New Model Search:

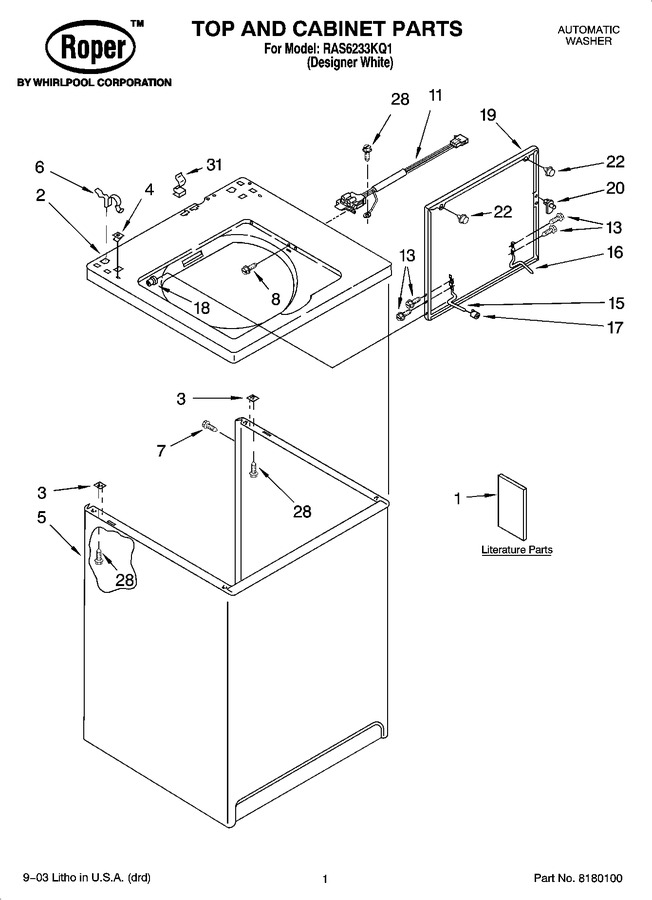

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT3956025 | Literature Parts (installation Instructions) |
|
- | |||||
| 1 | LIT8541941 | Literature Parts (wiring Diagram) |
|
- | |||||
| 1 | LIT3956356 | Literature Parts (energy Guide) |
|
- | |||||
| 1 | LIT3955872 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT3955913 | Feature Sheet |
|
- | |||||
| 2 | 8274315 | Top |
|
- | |||||
| 3 | WP62750 | Spacer, Cabinet To Top (4) (Replaces: 62750) |
|
Immediately | $ 8.07 | ||||
| 4 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 7.76 | |||||
| 5 | 63424 | Cabinet |
|
$ 388.52 | |||||
| 6 | WP62780 | Clip, Top & Cabinet & Rear Panel (2) (Replaces: 62780) |
|
Immediately | $ 8.19 | ||||
| 7 | WP308685 | Screw,10-16 X 1/2 (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 8 | WP3356311 | Screw & Washer, Lid Switch (2) (Replaces: 3356311) |
|
$ 8.23 | |||||
| 11 | 3949247V | Switch, Lid (Replaces: 3949237) |
|
Immediately | $ 50.87 | ||||
| 13 | WPW10119828 | Screw, Lid Hinge Mounting (4) (Replaces: 3351355) |
|
Immediately | $ 7.55 | ||||
| 15 | WP54584 | Hinge, Lid (l.h.) (Replaces: 54584) |
|
$ 35.50 | |||||
| 16 | WP91770 | Hinge, Lid (r.h.) (Replaces: 91770) |
|
$ 28.82 | |||||
| 17 | 19119 | Bumper, Lid Hinge |
|
$ 5.75 | |||||
| 18 | WP21258 | Bearing, Lid Hinge (2) (Replaces: 21258) |
|
$ 8.01 | |||||
| 19 | 3361412 | Lid |
|
- | |||||
| 20 | WP358684 | Strike, Lid Switch (Replaces: 358684) |
|
Immediately | $ 8.05 | ||||
| 22 | WP9724509 | Bumper, Lid (2) (Replaces: 9724509) |
|
Immediately | $ 8.33 | ||||
| 28 | WP3390631 | Screw, 10-16 X 3/8 (5) (Replaces: 3390631) |
|
$ 8.25 | |||||
| 31 | WP90016 | Clip, Harness (Replaces: 90016) |
|
$ 11.89 |
