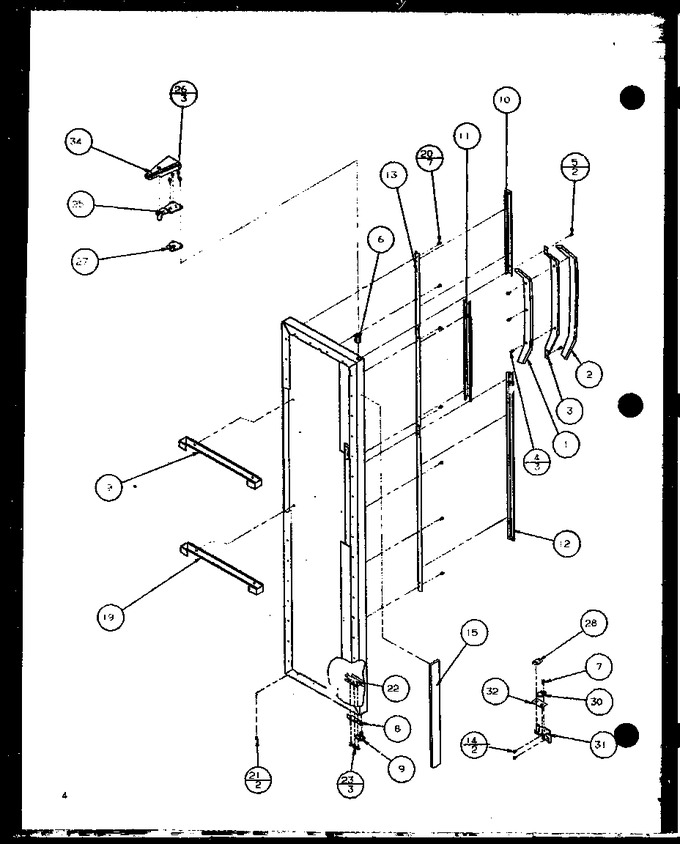

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7863001		Inner Pad K		Appelez-nous	-
1	D7863004		Pad, Handle Inner (alm)		Appelez-nous	-
1	D7863003		Inner Pad K		Appelez-nous	-
1	D7863002		Pad, Handle Inner (wht)		Appelez-nous	-
2	D7863102		Pad, Handle Outer (wht)		Appelez-nous	-
2	D7863104		Pad, Handle Outer (alm)		Appelez-nous	-
2	D7863103		Outer Pad K		Appelez-nous	-
3	D7826603		Handle		Appelez-nous	-
4	M0215115		Screw		Appelez-nous	-
5	WP3400094		Screw   (Replaces: M0253942)				$ 9.26
6	C8965901		Bushing, Top		Appelez-nous	-
7	WPW10068250		Screw   (Replaces: M0202530)				$ 4.27
8	C8972402		Stop, Door		Appelez-nous	-
9	R0181181		Kit,dr Closure   (Replaces: D7751402)			Immediately	$ 7.55
10	D7852103		Upper Trim Frz Dr (w)		Appelez-nous	-
10	D7852105		Upper Trim Frz Dr (l)		Appelez-nous	-
10	D7852104		Upper Trim Frz Dr		Appelez-nous	-
10	D7852102		Trim Upper Frz Door (b)		Appelez-nous	-
11	D7853902		Trim Center Frz K		Appelez-nous	-
11	D7853904		Trim Center Frz		Appelez-nous	-
11	D7853905		Trim Center Frz		Appelez-nous	-
11	D7853903		Trim Center Frz		Appelez-nous	-
12	D7792705		Trim, Lwr Frz Door (l)		Appelez-nous	-
12	D7792704		Trim, Lwr Frz Door		Appelez-nous	-
12	D7792703		Trim, Lwr Frz Door (w)		Appelez-nous	-
12	D7792702		Lower Trim Frz Door (b)		Appelez-nous	-
13	D7792902		Frz Trim, Retainer		Appelez-nous	-
14	M0246258		Screw		Appelez-nous	-
15	C8974102		Trim, Door		Appelez-nous	-
19	D7837401		Support, Handle		Appelez-nous	-
20	M0213815		Screw		Appelez-nous	-
21	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 8.43
22	D7790801		Nut, Door Stop		Appelez-nous	-
23	M0219717		Screw		Appelez-nous	-
25	D7757803		Top Hinge Assy		Appelez-nous	-
26	R9800670		Kit, Screw   (Replaces: M0257244)				$ 10.58
27	B8389001		Shim, Top Hinge		Appelez-nous	-
28	B8387701		Shim, Door Closure		Appelez-nous	-
28	B8387702		Shim, Door Closure		Appelez-nous	-
30	R0181181		Kit,dr Closure   (Replaces: D7748301)			Immediately	$ 7.55
31	D7757705		Hinge Assy		Appelez-nous	-
32	B8386702		Kit,btm Hinge Shim		Appelez-nous	-
32	B8386701		Kit,btm Hinge Shim		Appelez-nous	-
32	B8386703		Kit,btm Hinge Shim		Appelez-nous	-
34	D7872101		Cover Hinge		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
